Model No: NQ103006

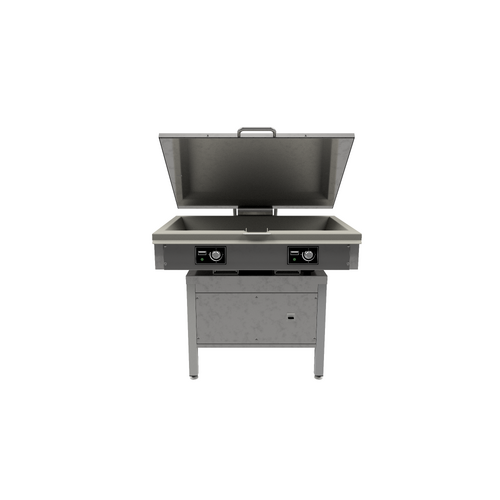

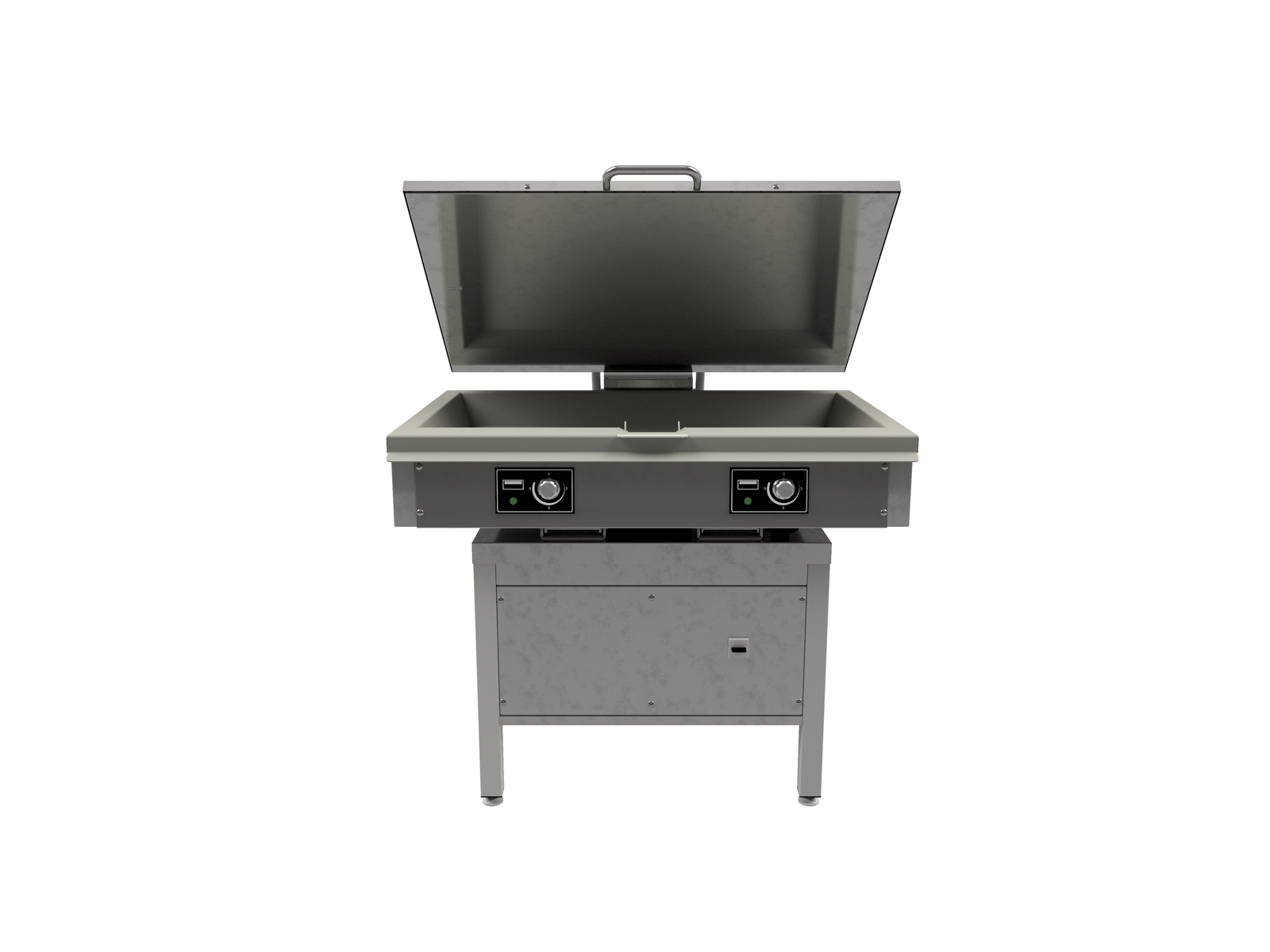

Norqi 0690 Bratt Pan 48L Standard Electric

Elevate your high-capacity cooking with the 48L Norqi 0690 Bratt Pan

Designed for professional kitchens that handle substantial food volumes, this robust electric pan boasts an impressive 48L capacity.

It’s ideal for searing generous portions of meat or poultry, stir-frying copious amounts of vegetables, simmering large pots of soup, and more.

Geared for restaurants, aged care facilities, clubs, hotels, and other commercial environments seeking unmatched large-format cooking performance, this powerhouse appliance effortlessly keeps up with the busiest service periods.

Winning Features

  • Excellent versatility: Fry, simmer, sauté, and beyond
  • 2 separate zones to accommodate diverse cooking requirements
  • Superior even heat dispersion for consistent cooking results
  • Effortless cleaning with a sleek stainless steel finish
  • Sturdy, high-grade stainless steel pan built for long-lasting performance
  • Impressive 48L capacity to meet extensive demands
  • Innovative tilting feature for convenient cooking and cleaning
  • Carefully engineered for energy efficiency, ensuring long-term savings
  • Small footprint
  • Fast heat recovery

Crafted for Commercial Rigour!

With a broader unit body, wider cooking area and drawing on more power than the 04120, the 0690 maintains the same generous 48L capacity, allowing you to cook substantial quantities each cycle to maximise the efficiency and output of your kitchen.


With an elevated power capacity and the ability to reach temperatures of up to 220°C quickly, its retention properties are renowned. Developing full and rich flavours with high-heat cooking techniques is a breeze thanks to superior heat dispersion.


Experience the ease of Norqi's innovative tilt mechanism, streamlining tasks from tossing to stirring and effortlessly transferring large batches. Moreover, this feature makes after-cleanup effortless.


Norqi consistently delivers professional-grade outcomes and is built on a reputation of reliability. Enquire today to explore the advantages of boosting your operations with the 0690 Bratt Pan.


Supercharge your kitchen's productivity with Norqi at your side.

Need a different size or prefer induction? Click here for more of the Norqi bratt pan range.



SKU NQ103006
Model 0690 Bratt Pan Standard Electric
Exterior Dimensions 1132 mm W x 846 mm D x 900 mm H
Cooking Surface Dimensions 965 mm W x 520 mm D x 90 mm H
Number of zones (pcs) 2
Capacity (L) 48L
Voltage 3 x400V+N+PE
Frequency (Hz) 50/60
Power (kW)td> 14.8
Current (A) 25A  3PH
Protection Class IP X5
