Model No: JO120004

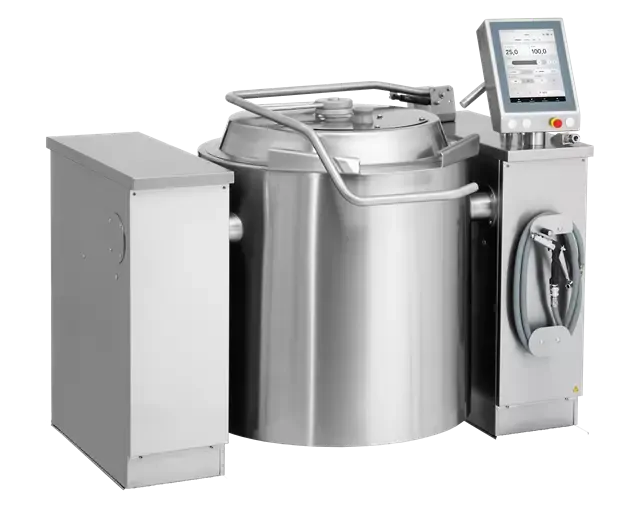

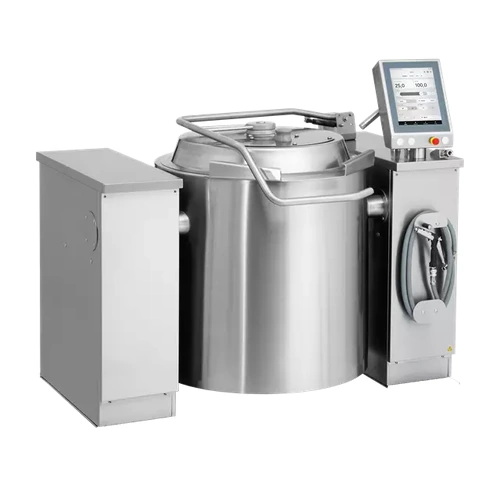

Joni MaxiMix AT86 Direct Steam Kettle 500L
MaxiMix 500 L Steam‐Jacketed Mixing Kettle
The MaxiMix 500 L is engineered for large-scale kitchens, food manufacturers, and institutions needing high-capacity, precision cooking. Built with durable stainless steel construction, steam-jacketed heating, and advanced digital control, it delivers consistent results for soups, sauces, pastes, and large-batch cooking — with efficiency, safety, and ease of operation.
Key benefits:
-
High capacity for large-batch production (500 litres nominal)
-
Steam jacket heated for even, efficient cooking, with ability to reach and hold precise temperatures
-
Integrated stirrer with variable speed, reversal and controls for recipe memory/control
-
Ergonomic tilt or pour design, built-in safety features (lid interlocks, inspection hatch)
-
Robust build: hygienic welded construction, easy to clean and maintain
MaxiMix 500 L – Built for volume, engineered for consistency.
(JO120004)
| Category | Kettle |
| Type | MaxiMix 500L |
| Construction | Stainless steel |
| Working pressure | 1.0 bar |
| Max. steam temperature | 120° C |
| Max. temperature on outside of kettle bowl | Less 40° C |
| Working height | 900 mm |
| Max. cooking capacity | 500 litres |
| Stirrer speed rpm min-max | 5-140 |
| Weight (kg) | 689 |
| Dimensions W x D x H (mm) | 1840 x 1450 x 2350 (Lid Open) |
| Power connection | 3 Phase, 400V, 50Hz, |
| Rated power (kw) | 63 |
| Current consumption (A) | 3 x 95 |
| Time to boil water 10°-90° C (min) | app. 47 |
| Water connection | ½", 1.5-6 bar, 35L/min |
