Model No: JO108002

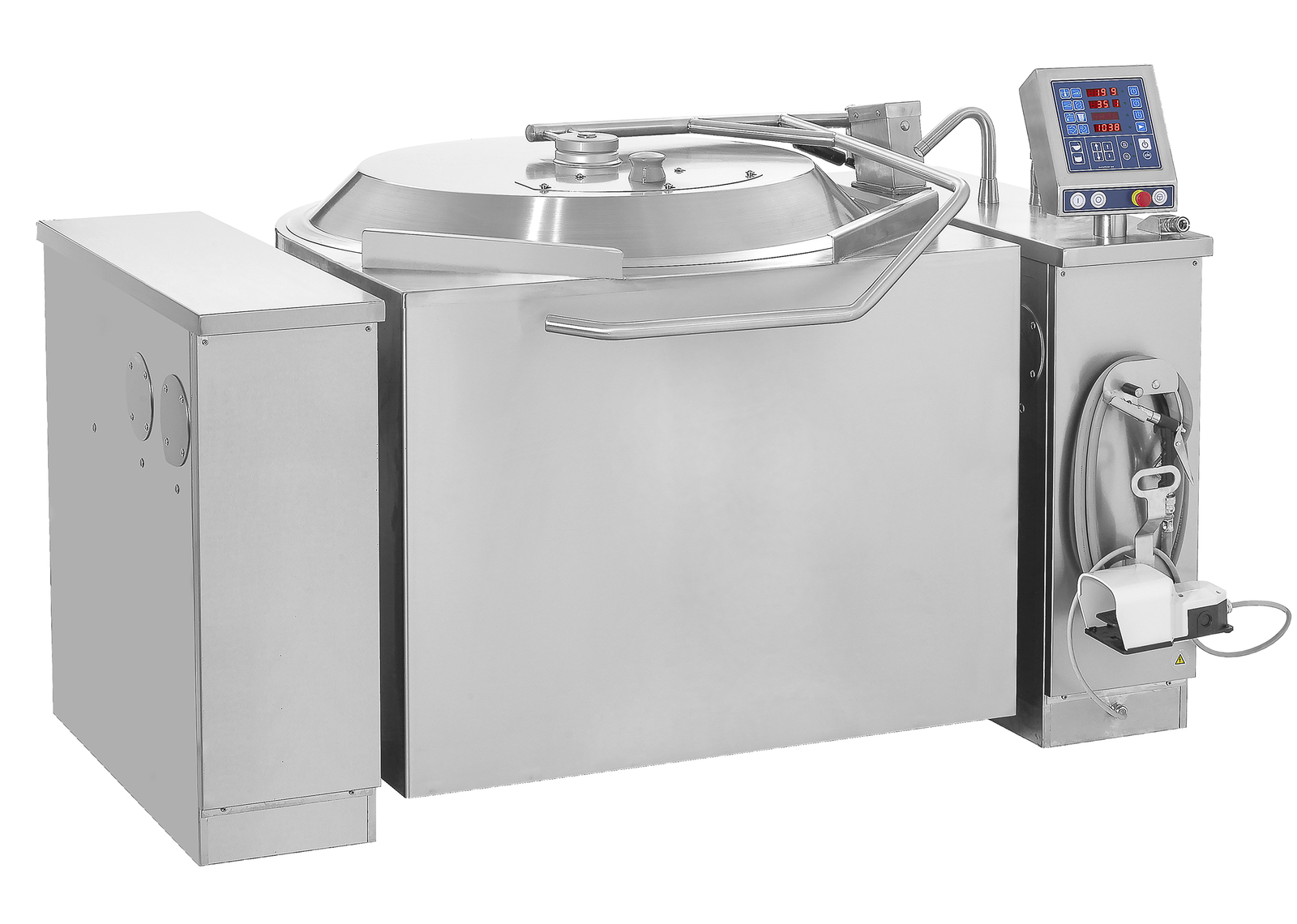

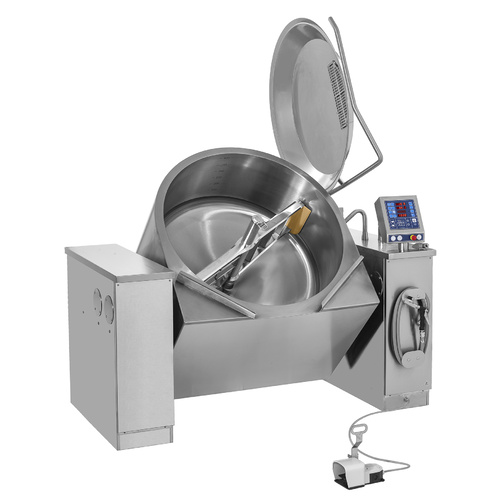

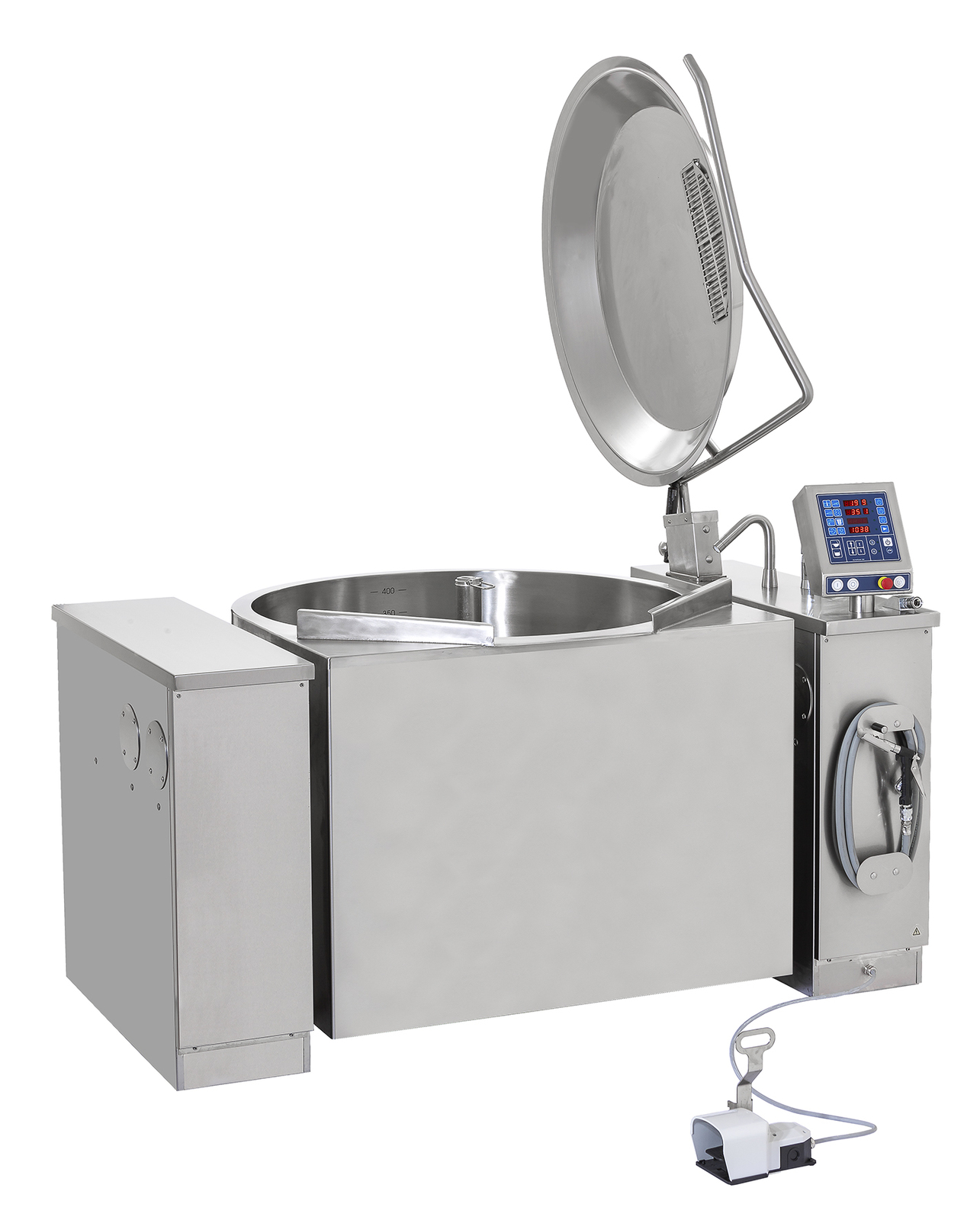

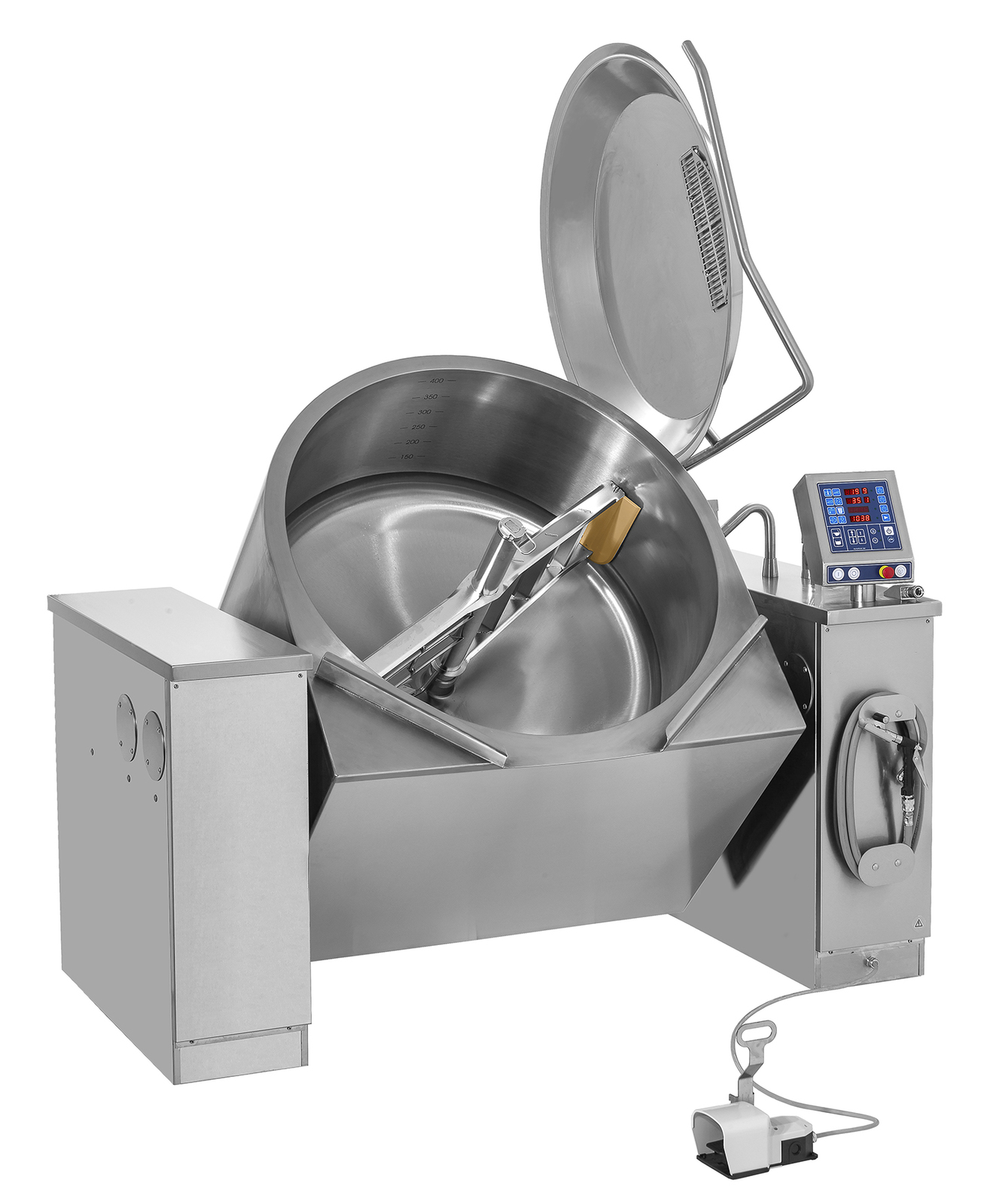

Joni MaxiMix QuickChill 400L AT56 Direct Steam Jacketed Mixing Kettle

Joni MaxiMix QuickChill 400L

Cook. Cool. Control — All in One System.

The Joni MaxiMix QuickChill 400L AT56 Direct Steam Jacketed Mixing Kettle  is engineered for high-volume food production where food safety, efficiency, and consistency are critical. Powered by Joni’s advanced AutoTemp control system, the QuickChill model integrates precision cooking with rapid cooling technology, transforming time-consuming batch processes into a streamlined, HACCP-compliant solution.

With a nominal capacity of 400 liters, the MaxiMix QuickChill allows operators to cook and cool in the same hygienic vessel — reducing handling, improving workflow efficiency, and preserving product quality at scale.


Why Choose the Joni MaxiMix QuickChill 400L?

Cook & Chill in One Vessel
Eliminate unnecessary product transfers. Cook and rapidly cool within the same unit to reduce contamination risks and improve operational efficiency.

Rapid & Controlled Cooling
Integrated chilling system enables fast temperature reduction to meet HACCP food safety standards while maintaining texture, flavour, and nutritional integrity.

Maximum Food Safety & Compliance
Precise digital temperature control and programmable cooling cycles ensure consistent, traceable production processes.

Hygienic & Ergonomic Design
Constructed from one-piece welded stainless steel with no internal joints in the food zone for superior hygiene and easy cleaning. Electric tilt with optimal discharge height ensures safe and efficient decanting.


Optional High-Performance Upgrades

  • PowerMix & SlowMix – Advanced multi-speed stirring functions, including stirring during tilt

  • Automatic Chilling System – Integrated rapid cooling using mains or chilled water supply

  • Eco-Smart Water Functions – Reduce water usage and support sustainability targets

  • MultiClean System – Automated internal cleaning for maximum hygiene and reduced labour




(JO108002)

Description Joni MaxiMix QuickChill 400L AT56 Direct Steam Jacketed Mixing Kettle
Product Code  JO 108002
Dimensions W x D x H (mm) 1840 x 1450 x 2240 (Lid Open)
Power connection 3 Phase, 400V, 50Hz
Rated power (kW) 3.1
Current consumption (A) 3 × 9
Working height 900 mm
Max. cooking capacity 400 litres
Weight (kg) 649
Cooling system Integrated rapid cooling system with cold water injection and automated temperature control
Time to boil water 10°–90°C (min) App. 30
Cooling performance Rapid reduction from cooking temperature to safe handling temperature (dependent on load)
Water connection ½", 1.5–6 bar, 35 L/min
Chilling Times 65°C to 10°C - 38min | 90°C to 10°C - 44min | 90°C to 3°C - 77min
