Model No: AX6ST84IP2NA001

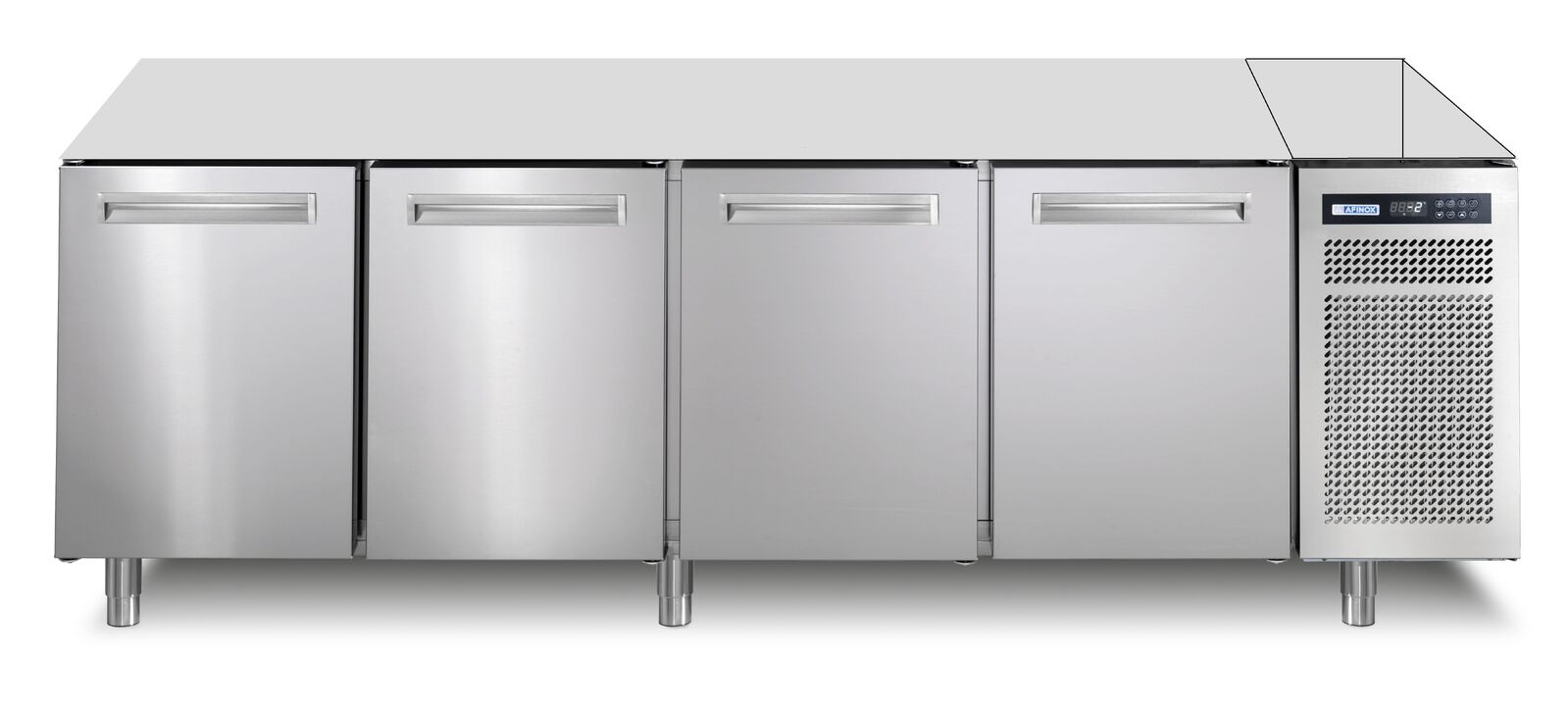

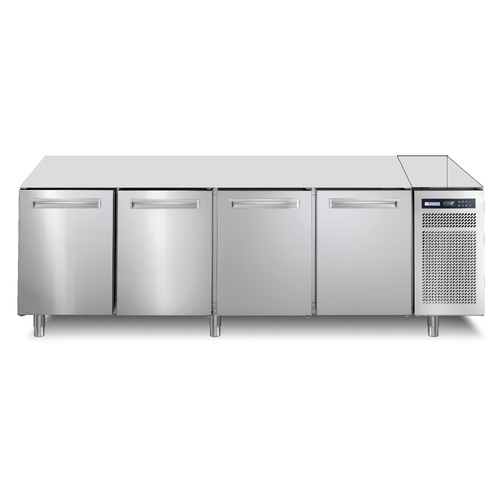

Afinox Spring Plus Pastry 804TN/S Without Worktop Refrigerator

The Afinox Spring Plus Pastry 804TN/S Without Worktop Refrigerator is a ventilated refrigerated counter designed for professional bakeries, pastry kitchens and commercial foodservice environments requiring chilled storage in a configuration without a worktop. Manufactured from AISI 304 stainless steel, the unit accommodates EN 400 × 600 bakery trays and incorporates a built-in refrigeration system using environmentally friendly R290 refrigerant.

Operating within a temperature range of ?2°C to +7°C, the cabinet features an electronic controller with a digital display and Climate Class 5 performance. The without-worktop design allows integration into custom preparation and production workstations while maintaining reliable refrigerated storage capacity.

Winning Features

  • Temperature range: ?2°C to +7°C
  • AISI 304 stainless steel construction
  • Without worktop configuration
  • Ventilated refrigeration system
  • Electronic controller with digital display
  • Climate Class 5 performance
  • Built-in refrigeration unit with R290 refrigerant

Designed for flexible installation

The Spring Plus Pastry 804TN/S is designed for professional bakery and pastry environments requiring refrigerated storage integrated into custom workstations. Rounded internal corners, a raised evaporator and integrated water discharge system assist with cleaning and maintenance.

The Afinox Spring Plus Pastry 804TN/S also features

  • 4-door refrigerated counter configuration
  • EN 400 × 600 tray compatibility
  • Built-in refrigeration unit
  • R290 refrigerant
  • Integrated water discharge pipe
  • Rounded internal corners
  • Raised evaporator for easier cleaning
  • Automatic defrost system

(AX6ST84IP2NA001)

Model Spring Plus Pastry 804TN/S
Model Number AX6ST84IP2NA001
Door Configuration 4 Door
Dimensions  2560 x 790 x 800
Tray Compatibility EN 400 x 600 mm
Temperature Range “2°C to +7°C
Power Supply 230V / 1Ph / 50Hz
Nominal Power 247 Watts
Absorbed Current 5.03 Amps
Annual Consumption  726 kWh/annum
Net Weight  140kg
Gross Weight  191kg
Refrigerant R290
