Model No: AX6ST82IP2VA001

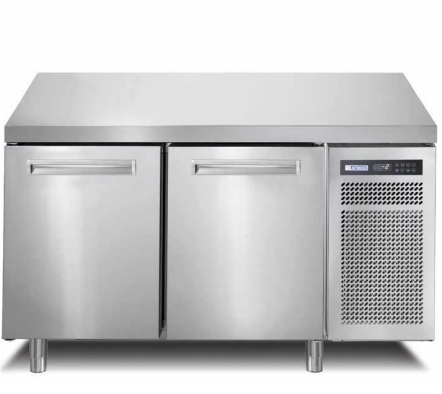

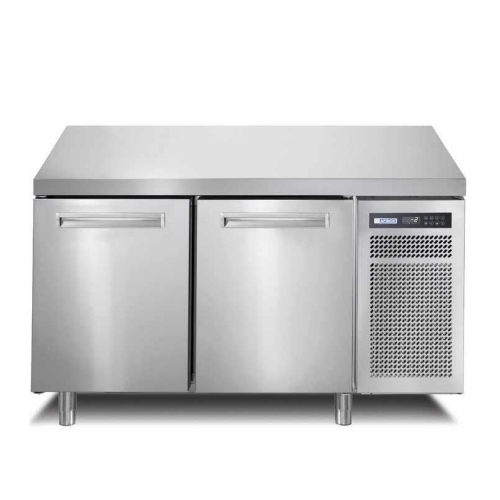

Afinox Spring Plus Pastry 802TN Straight Worktop Refrigerator
The Afinox Spring Plus 802TN is a ventilated refrigerated counter designed for professional foodservice, bakery, and preparation environments. Constructed from AISI 304 stainless steel, it features a straight worktop and built-in refrigeration system, providing refrigerated storage and food preparation space in a single unit.
Operating within a temperature range of –2°C to +7°C, the unit incorporates an electronic controller with 8-key digital display and uses environmentally friendly R290 refrigerant. Designed for EN 600 x 400 bakery trays, the cabinet delivers reliable refrigerated performance for demanding commercial kitchens.
Winning Features
- Refrigerated temperature range: –2°C to +7°C
- AISI 304 stainless steel construction
- Straight worktop configuration
- Ventilated refrigeration system
- Electronic controller with 8-key digital display
- 90° stop self-closing doors
- Climate Class 5 performance
Designed for efficient refrigerated storage and preparation
The Spring Plus 802TN incorporates rounded internal corners, a raised evaporator, and an integrated water discharge pipe to facilitate cleaning. Built-in models feature automatic defrost and automatic condensate water evaporation systems to simplify daily operation and maintenance.
The Afinox Spring Plus 802TN also features
- 2-door refrigerated counter configuration
- 240L net storage volume
- 3 pairs of stainless steel L runners per door
- Suitable for EN 600 x 400 bakery trays
- R290 refrigerant (0.100 kg, GWP 3)
- Built-in refrigeration unit
- Integrated water discharge pipe
- Raised evaporator for easier cleaning
(AX6ST82IP2VA001)
| Model | Spring Plus 802TN |
| Model Number | 6ST82IP2VA001 |
| External Dimensions | 1450 x 800 x 850 mm |
| Internal Capacity | 240 L |
| Door Configuration | 2 Door |
| Tray Compatibility | EN 600 x 400 mm |
| Shelf Configuration | 3 pairs of stainless steel L runners per door |
| Temperature Range | –2°C to +7°C |
| Climate Class | 5 (40°C / 40% RH) |
| Energy Efficiency Class | A |
| Power Supply | 230V / 1Ph / 50Hz |
| Nominal Power Consumption | 247 W |
| Maximum Absorbed Current | 5.03 A |
| Net Storage Volume | 240 L |
| Yearly Energy Consumption | 448 kWh/annum |
| Refrigerant | R290 (0.100 kg, GWP 3) |
| Type | Refrigerated Counter |
