Model No: AX6ST82IP2NA001

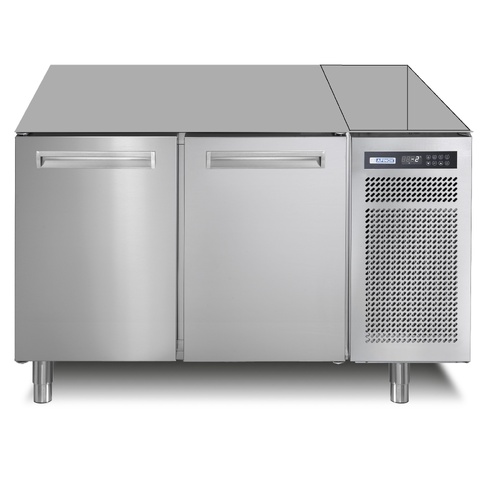

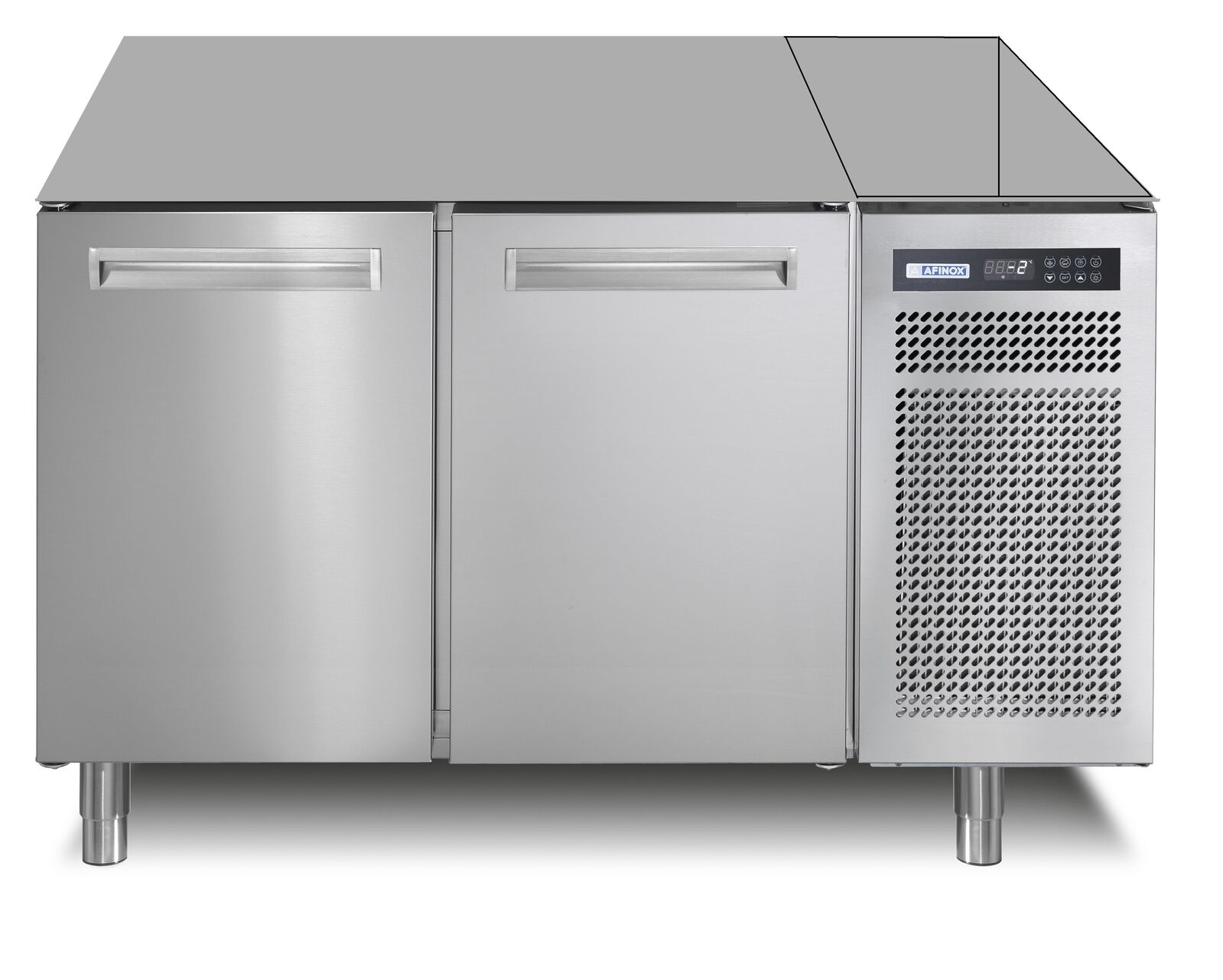

Afinox Spring Plus Pastry 802TN/S Without Worktop Refrigerator
The Afinox Spring Plus 802TN/S is a ventilated refrigerated counter designed for professional foodservice, bakery, and preparation environments. Manufactured from AISI 304 stainless steel, this model is supplied without a worktop, making it suitable for integration into custom kitchen layouts and workstations.
Featuring a built-in refrigeration system, electronic controller with 8-key digital display, and a refrigerated operating range of –2°C to +7°C, the unit provides reliable refrigerated storage while accommodating EN 400 x 600 trays. The cabinet incorporates practical design features to assist with cleaning and day-to-day operation.
Winning Features
- Refrigerated temperature range: –2°C to +7°C
- AISI 304 stainless steel construction
- Without worktop configuration
- Ventilated refrigeration system
- Electronic controller with 8-key digital display
- 90° stop self-closing doors
- Climate Class 5 performance
Designed for integration into custom preparation areas
The Spring Plus 802TN/S features rounded internal corners, a raised evaporator, and an integrated water discharge pipe to assist cleaning and maintenance. Built-in models include automatic defrost and automatic condensate water evaporation systems for simplified operation. :contentReference[oaicite:0]{index=0}
The Afinox Spring Plus 802TN/S also features
- 2 EN 400 x 600 refrigerated compartments
- 3 pairs of stainless steel L runners per door
- 240L net storage volume
- Built-in refrigeration unit
- R290 refrigerant
- Integrated water discharge pipe
- Rounded internal corners
- Raised evaporator for easier cleaning
(AX6ST82IP2NA001)
| Model | Spring Plus 802TN/S |
| Model Number | 6ST82IP2NA001 |
| External Dimensions | 1450 x 790 x 800 mm |
| Internal Capacity | 240 L |
| Door Configuration | 2 Door |
| Tray Compatibility | EN 400 x 600 mm |
| Shelf Configuration | 3 pairs of stainless steel L runners per door |
| Temperature Range | –2°C to +7°C |
| Climate Class | 5 (40°C / 40% RH) |
| Energy Efficiency Class | A |
| Power Supply | 230V / 1Ph / 50Hz |
| Nominal Power Consumption | 247 W |
| Maximum Absorbed Current | 5.03 A |
| Yearly Energy Consumption | 448 kWh/annum |
| Refrigerant | R290 (0.100 kg, GWP 3) |
| Controller | Electronic Controller with 8-key Digital Display |
| Type | Refrigerated Counter Without Worktop |
