Model No: AX6ST82IP2LA001

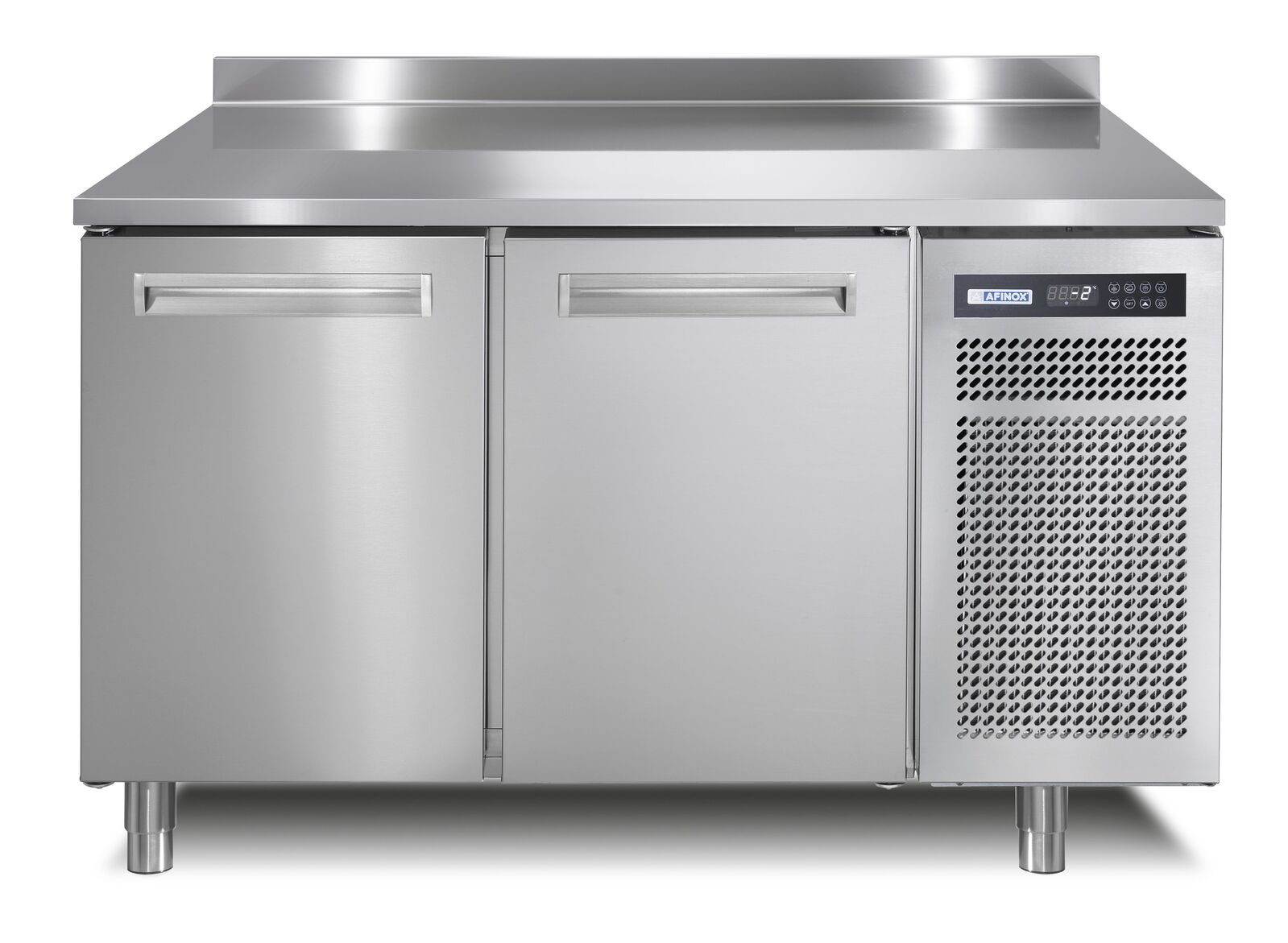

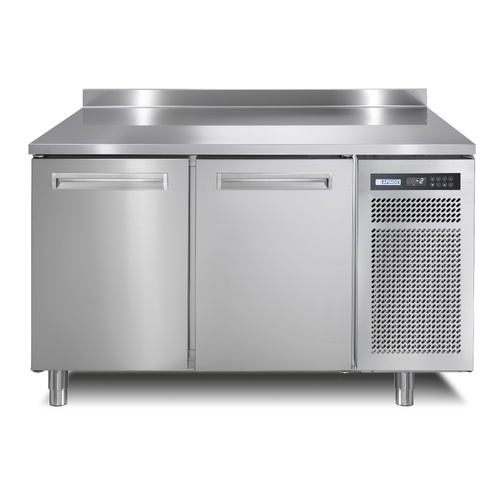

Afinox Spring Plus Pastry 802TN/A Worktop With Splashback Refrigerator
The Afinox Spring Plus 802TN/A is a ventilated refrigerated counter designed for professional foodservice, bakery, and preparation environments. Constructed from AISI 304 stainless steel, it combines refrigerated storage with a practical worktop featuring a splashback for enhanced workspace functionality.
Featuring a built-in refrigeration system, electronic controller with 8-key digital display, and a refrigerated operating range of –2°C to +7°C, the unit is designed to provide reliable temperature control and efficient day-to-day operation. The cabinet accommodates EN 400 x 600 trays and includes three pairs of stainless steel L runners per door. :contentReference[oaicite:0]{index=0}
Winning Features
- Refrigerated temperature range: –2°C to +7°C
- AISI 304 stainless steel construction
- Worktop with splashback
- Ventilated refrigeration system
- Electronic controller with 8-key digital display
- 90° stop self-closing doors
- Climate Class 5 performance
Designed for efficient refrigerated storage and preparation
The Spring Plus 802TN/A incorporates rounded internal corners, a raised evaporator, and an integrated water discharge pipe to facilitate cleaning. Built-in models feature automatic defrost and automatic condensate water evaporation systems for simplified operation and maintenance. :contentReference[oaicite:1]{index=1}
The Afinox Spring Plus 802TN/A also features
- 2 EN 400 x 600 refrigerated compartments
- 3 pairs of stainless steel L runners per door
- 240L net storage volume
- Built-in refrigeration unit
- R290 refrigerant
- Integrated water discharge pipe
- Rounded internal corners
- Raised evaporator for easier cleaning
(AX6ST82IP2LA001)
| Model | Spring Plus 802TN/A |
| Model Number | 6ST82IP2LA001 |
| External Dimensions | 1450 x 800 x 950 mm |
| Internal Capacity | 240 L |
| Door Configuration | 2 Door |
| Tray Compatibility | EN 400 x 600 mm |
| Shelf Configuration | 3 pairs of stainless steel L runners per door |
| Maximum Shelf Capacity | 18 EN 600 x 400 H40 mm trays |
| Temperature Range | –2°C to +7°C |
| Climate Class | 5 (40°C / 40% RH) |
| Energy Efficiency Class | A |
| Power Supply | 230V / 1Ph / 50Hz |
| Nominal Power Consumption | 247 W |
| Maximum Absorbed Current | 5.03 A |
| Insulation Thickness | 60 mm |
| Net Weight | 131 kg |
| Gross Weight | 167 kg |
| Yearly Energy Consumption | 448 kWh/annum |
| Daily Energy Consumption | 1.23 kWh/24h |
| Refrigerant | R290 (0.100 kg, GWP 3) |
| Controller | Electronic Controller with 8-key Digital Display |
| Type | Refrigerated Counter |
