Model No: AX6ST82IB2LA001

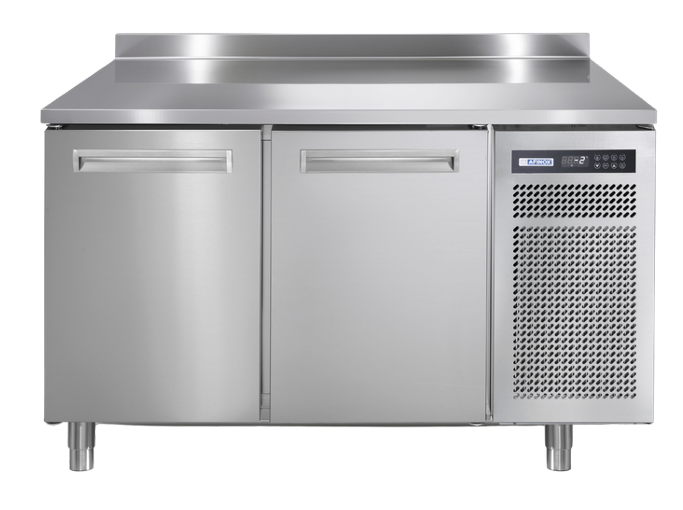

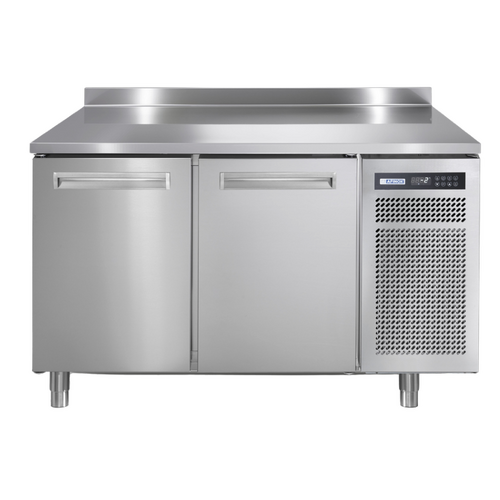

Afinox Spring Plus Pastry 802BT/A With Splashback Freezer

For pastry professionals requiring frozen storage and preparation space, the Afinox Spring 802 Plus BT/A combines durable stainless steel construction with advanced temperature control and efficient refrigeration performance.


Manufactured entirely from AISI 304 stainless steel, this ventilated refrigerated counter features a worktop with splashback, built-in refrigeration system, and two EN 400 x 600 compartments. The electronic controller with digital display provides precise temperature management across a frozen operating range of -24 °C to -10 °C.

Designed for reliability and ease of maintenance, the unit incorporates rounded internal corners, a raised evaporator, and an integrated drain system. The 90° stop self-closing doors and innovative humidity control and overcooling functions help support demanding pastry production environments.

Winning Features

  • Frozen operating range: -24 °C to -10 °C
  • AISI 304 stainless steel construction
  • Ventilated refrigeration system
  • Worktop with splashback
  • Electronic controller with digital display
  • 90° stop self-closing doors
  • R290 refrigerant technology

Engineered for performance and practicality

Built for professional pastry operations, the Spring 802 Plus BT/A combines durable construction with practical cleaning and maintenance features. Rounded interiors, a raised evaporator, integrated drain system, and innovative electronic controls contribute to efficient day-to-day operation.

The Afinox Spring 802 Plus BT/A also features

  • 2 EN 400 x 600 refrigerated compartments
  • 3 pairs of stainless steel L runners per door
  • Built-in refrigeration unit
  • 60mm insulation thickness
  • Humidity control function
  • Overcooling function
  • Optional sterilizer
  • Optional removable filter

(AX6ST82IB2LA001)

Model Spring 802 Plus BT/A
Model Number AX6ST82IB2LA001
External Dimensions 1450 x 800 x 950 mm
Internal Capacity 240 L
Door Configuration 2 Door
Tray Compatibility EN 400 x 600 mm
Runner Configuration 3 Pairs of Stainless Steel L Runners per Door
Temperature Range -24 °C to -10 °C
Power Supply 230V / 1Ph / 50Hz
Maximum Absorbed Current 5.03A
Refrigerating Power 11290 W
Insulation Thickness 60 mm
Internal Dimensions 430 x 670 x 528 mm (x2 compartments)
Annual Energy Consumption 4280 kWh/annum
Refrigerant R290 (0.140 kg, GWP 3)
Controller Electronic Digital Controller
Type Ventilated Pastry Freezer Counter
