Model No: AX6ST74IB2NA001

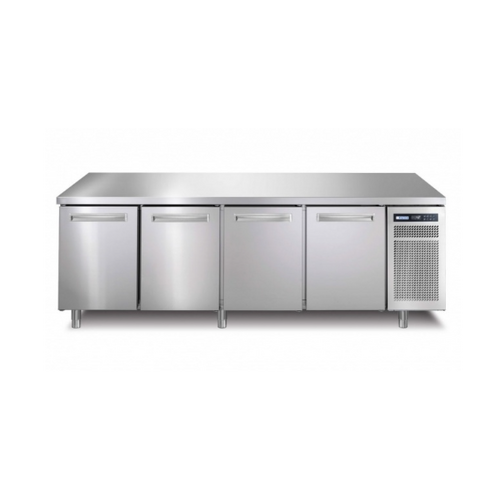

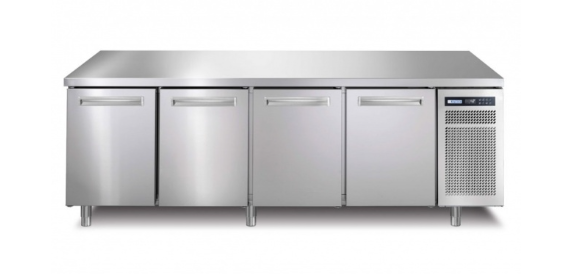

Afinox Spring Plus 704BT/S Without Worktop Freezer

The Afinox Spring Plus 704BT/S is a ventilated freezer counter designed for professional bakeries, pastry kitchens and commercial foodservice operations requiring high-capacity frozen storage without a worktop. Manufactured from AISI 304 stainless steel, the cabinet features a built-in refrigeration system using environmentally friendly R290 refrigerant and provides reliable frozen storage for demanding commercial applications.

Operating within a temperature range of ?24°C to ?10°C, the unit incorporates an electronic controller with an 8-key digital display for precise temperature management and Climate Class 5 performance. The without-worktop configuration allows seamless integration beneath custom preparation benches while maximising frozen storage capacity and maintaining an efficient workflow.

Winning Features

  • Freezer temperature range: ?24°C to ?10°C
  • AISI 304 stainless steel construction
  • Without worktop configuration
  • Ventilated refrigeration system
  • Electronic controller with 8-key digital display
  • Built-in refrigeration system using R290 refrigerant
  • Climate Class 5 performance

Designed for professional frozen food storage

The Spring Plus 704BT/S is designed for bakeries, pastry laboratories and commercial kitchens requiring dependable frozen storage integrated into custom workstations. Rounded internal corners, a raised evaporator and automatic defrost and condensate evaporation systems help simplify cleaning while maintaining hygienic operating conditions.

The Afinox Spring Plus 704BT/S also features

  • 4-door freezer counter configuration
  • 90° stop self-closing doors
  • Rounded internal base for easier cleaning
  • Raised evaporator for simplified maintenance
  • Automatic defrost system
  • Automatic condensate water evaporation (built-in models)
  • Built-in refrigeration unit
  • R290 natural refrigerant

(AX6ST74IB2NA001)

Model Spring Plus 704BT/S
Model Number AX6ST74IB2NA001
Door Configuration 4 Door
Dimensions 2182 × 690 × 800 mm
Tray Compatibility EN 600 × 400 mm
Temperature Range ?24°C to ?10°C
Power Supply 230V / 1Ph / 50Hz
Nominal Power 413 Watts
Absorbed Current 6.21 Amps
Annual Consumption 2931 kWh/annum
Net Weight 128 kg
Gross Weight 176 kg
Refrigerant R290
