Model No: AX6ST72IB2NA001

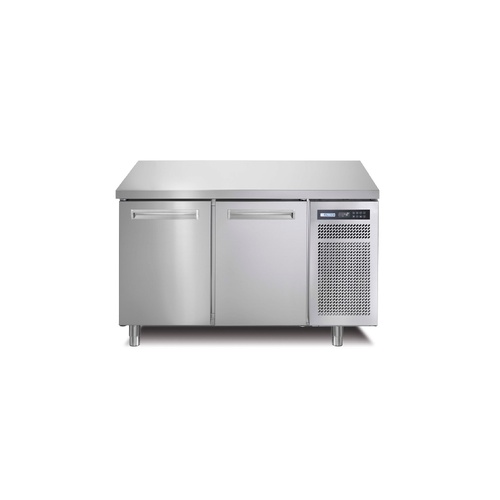

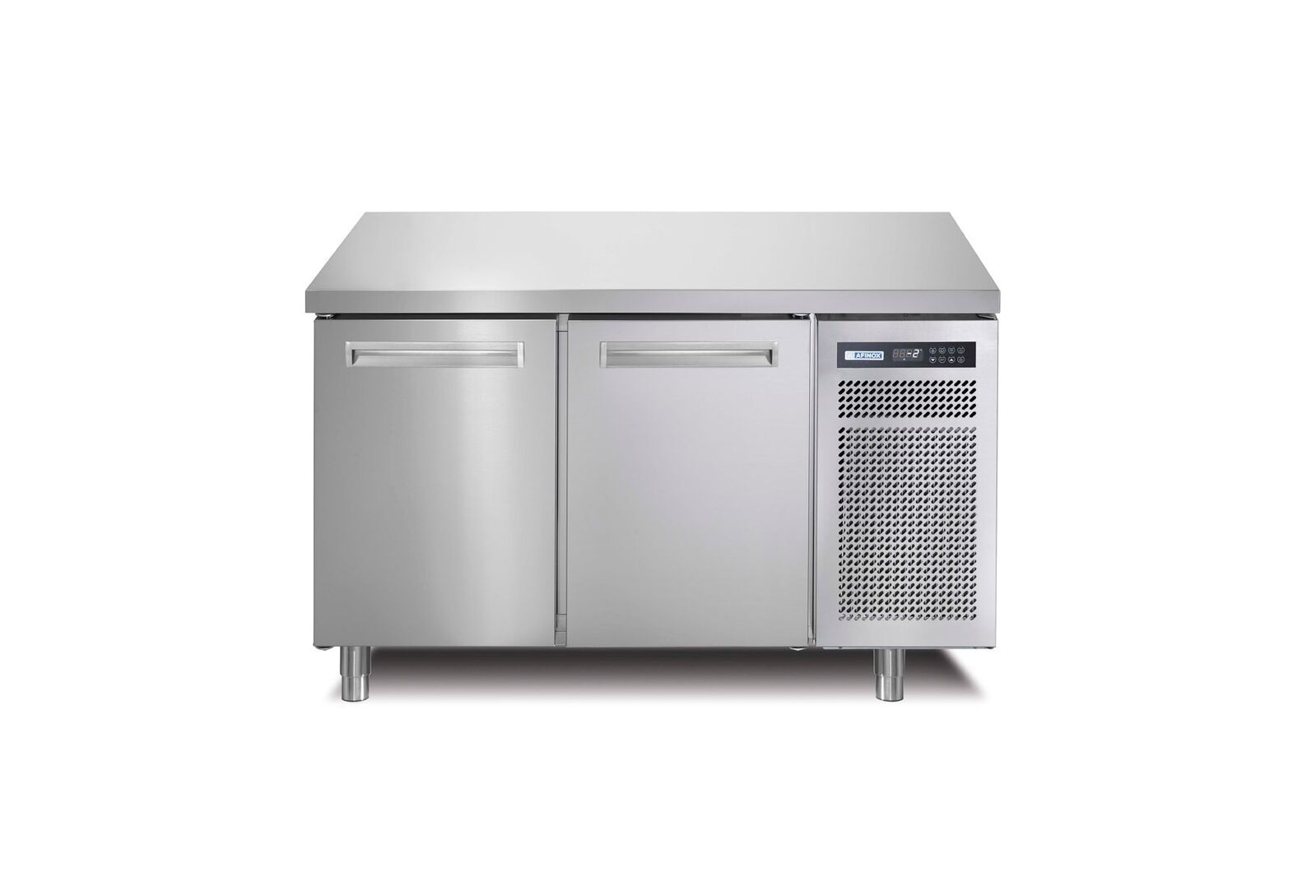

Afinox Spring Plus 702BT/S Without Worktop Freezer
In Stock
Designed for commercial kitchens, restaurants, cafés, and foodservice operations, the SPRINGPLUS 702BT/S is a commercial refrigerated storage counter designed for frozen food storage. Featuring a temperature range of -24°C to -10°C, this model comes without a worktop and is equipped with a built-in refrigeration system using R290 refrigerant.
Winning features:
- Frozen temperature range of -24°C to -10°C
- Without worktop configuration (S version)
- R290 refrigerant with GWP 3
- Climate Class 5 (40°C / 40% RH)
| Model | SPRINGPLUS 702BT/S |
| Model Number | 6ST72IB2NA001 |
| External Dimensions | 1266 x 690 x 800 mm |
| Temperature Range | -24°C to -10°C |
| Energy Class | D |
| Climate Class | 5 (40°C / 40% RH) |
| Annual Energy Consumption | 2218 kWh/year |
| Absorbed Power | 413 W |
| Maximum Absorbed Current | 6.21 A |
| Power Supply | 230V / 1Ph / 50Hz |
| Packaging Dimensions | 1360 x 760 x 1030 mm |
| Net Weight | 88 kg |
| Gross Weight | 120 kg |
| Refrigerant | R290 (GWP 3) |
| Refrigerant Charge | 0.140 kg |
(AX6ST72IB2NA001)
| Model | Spring Plus 702TN/S |
| Model Number | AX6ST72IP2NA001 |
| Door Configuration | 2 Door |
| Dimensions | 1266 × 690 × 800 mm |
| Tray Compatibility | EN 600 × 400 mm |
| Temperature Range | ?2°C to +7°C |
| Power Supply | 230V / 1Ph / 50Hz |
| Nominal Power | 247 Watts |
| Absorbed Current | 5.03 Amps |
| Annual Consumption | 510 kWh/annum |
| Net Weight | 89 kg |
| Gross Weight | 119 kg |
| Refrigerant | R290 |
