Model No: AX6SP84IP2KA001-AA

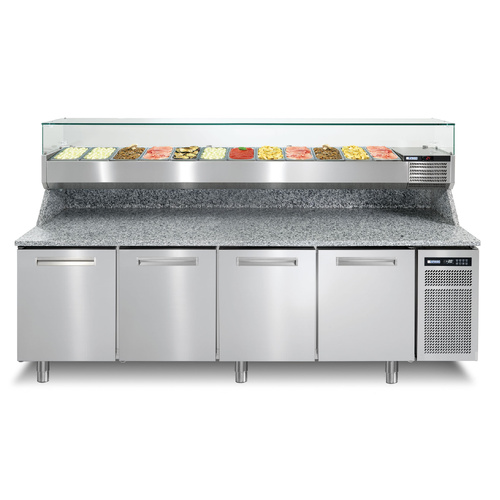

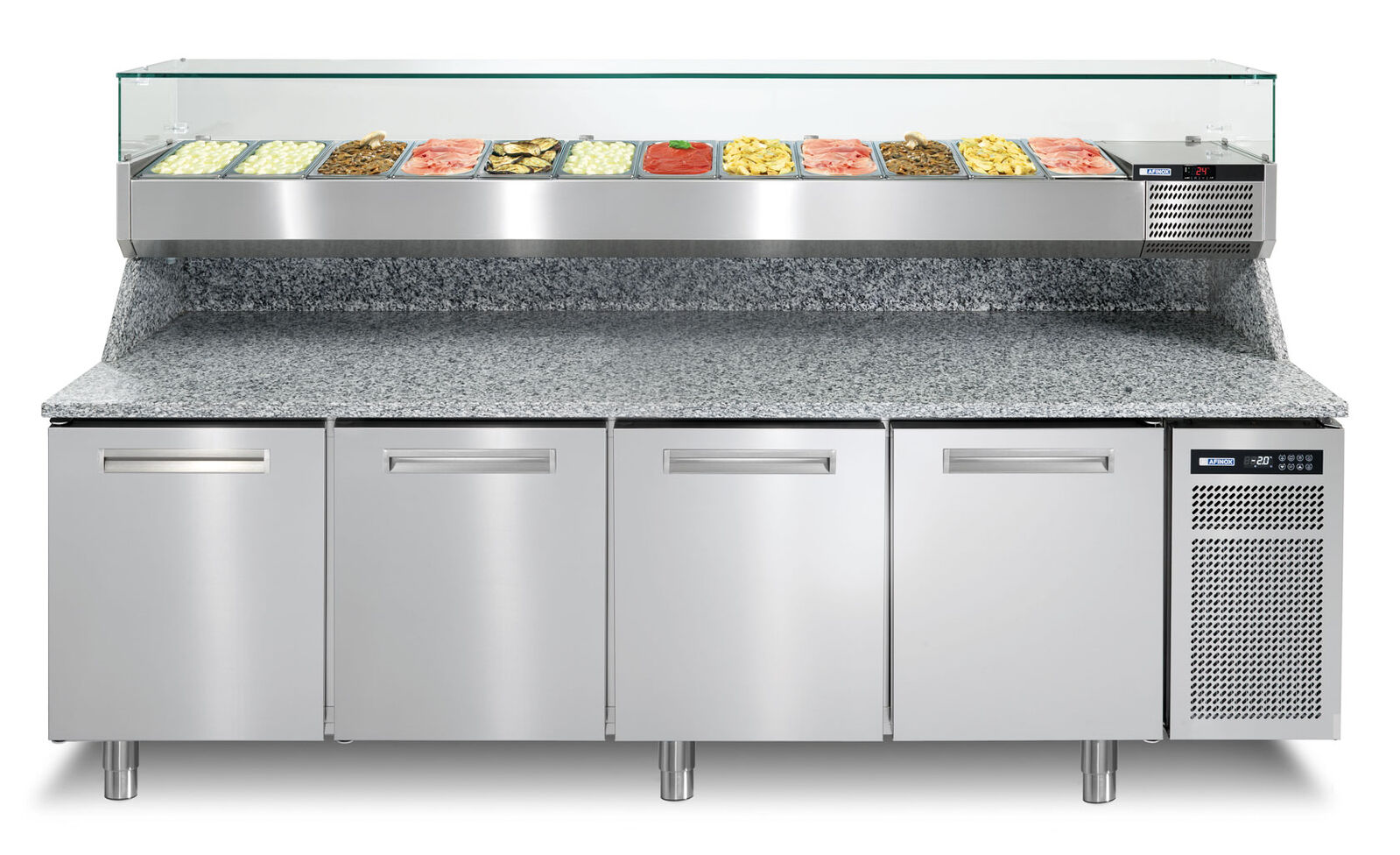

Afinox Pizza Spring Plus 840I + VRS2560V

For pizzerias and foodservice professionals requiring high-capacity refrigerated preparation space, the Afinox Pizza Spring Plus 840I + VRS2560V combines durable stainless steel construction with practical features designed for efficient daily operation.


Manufactured entirely from AISI 304 stainless steel, this refrigerated pizza counter features a granite worktop with splashback, built-in refrigeration system, and four EN 400 x 600 refrigerated compartments. The electronic controller with 8-key digital display provides precise temperature management across a refrigerated operating range of –2 °C to +7 °C.

Designed to simplify cleaning and maintenance, the unit incorporates rounded internal corners, a raised evaporator, integrated water discharge pipe, and drip-edged worktop. Automatic defrost and condensate evaporation systems help ensure reliable performance in demanding commercial kitchen environments.

Winning Features

  • Refrigerated operating range: –2 °C to +7 °C
  • AISI 304 stainless steel construction
  • Granite worktop with splashback
  • Ventilated refrigeration system using R290 refrigerant
  • Electronic controller with 8-key digital display
  • 90° stop self-closing doors
  • Climate Class 5 performance

Engineered for performance and practicality

Built for professional pizza preparation environments, the Pizza Spring Plus 840I combines durable construction with practical cleaning and maintenance features. The rounded interior design, raised evaporator, integrated water discharge system, and automatic defrost functions contribute to efficient day-to-day operation.

The Afinox Pizza Spring Plus 840I also features

  • 4 EN 400 x 600 refrigerated compartments
  • 1 plastic-coated EN 400 x 600 shelf per door
  • Stainless steel L runners
  • Built-in refrigeration unit
  • Automatic condensate evaporation system
  • Integrated water discharge pipe
  • 60mm insulation thickness
  • Optional removable filter

(AX6SP84IP2KA001-AA)

Model Pizza Spring Plus 840I + VRS2560V
Model Number AX6SP84IP2KA001-AA
External Dimensions 2560 x 800 x 1030 mm
Internal Dimensions 430 x 670 x 528 mm (x4 Doors)
Internal Capacity 510.8 L
Door Configuration 4 Door
Tray Compatibility EN 400 x 600 mm
Shelf Configuration 1 EN 400 x 600 plastic-coated shelf per door
Maximum Shelf Capacity 40 EN 600 x 400 H40 mm shelves
Temperature Range –2 °C to +7 °C
Climate Class 5 (40°C / 40% RH)
Energy Efficiency Class A
Power Supply 230V / 1Ph / 50Hz
Nominal Power Consumption 522W
Maximum Absorbed Current 5.03A
Refrigerating Power 247W
Insulation Thickness 60 mm
Noise Level 50 dB
Net Weight 361 kg
Gross Weight 401 kg
Yearly Energy Consumption 726 kWh/annum
Daily Energy Consumption 5 kWh/24h
Refrigerant R290 (0.120 kg, GWP 3)
Controller EVX
Compressor EMT6165U
Type Refrigerated Pizza Counter
