Model No: AX7AMI12I5SA001

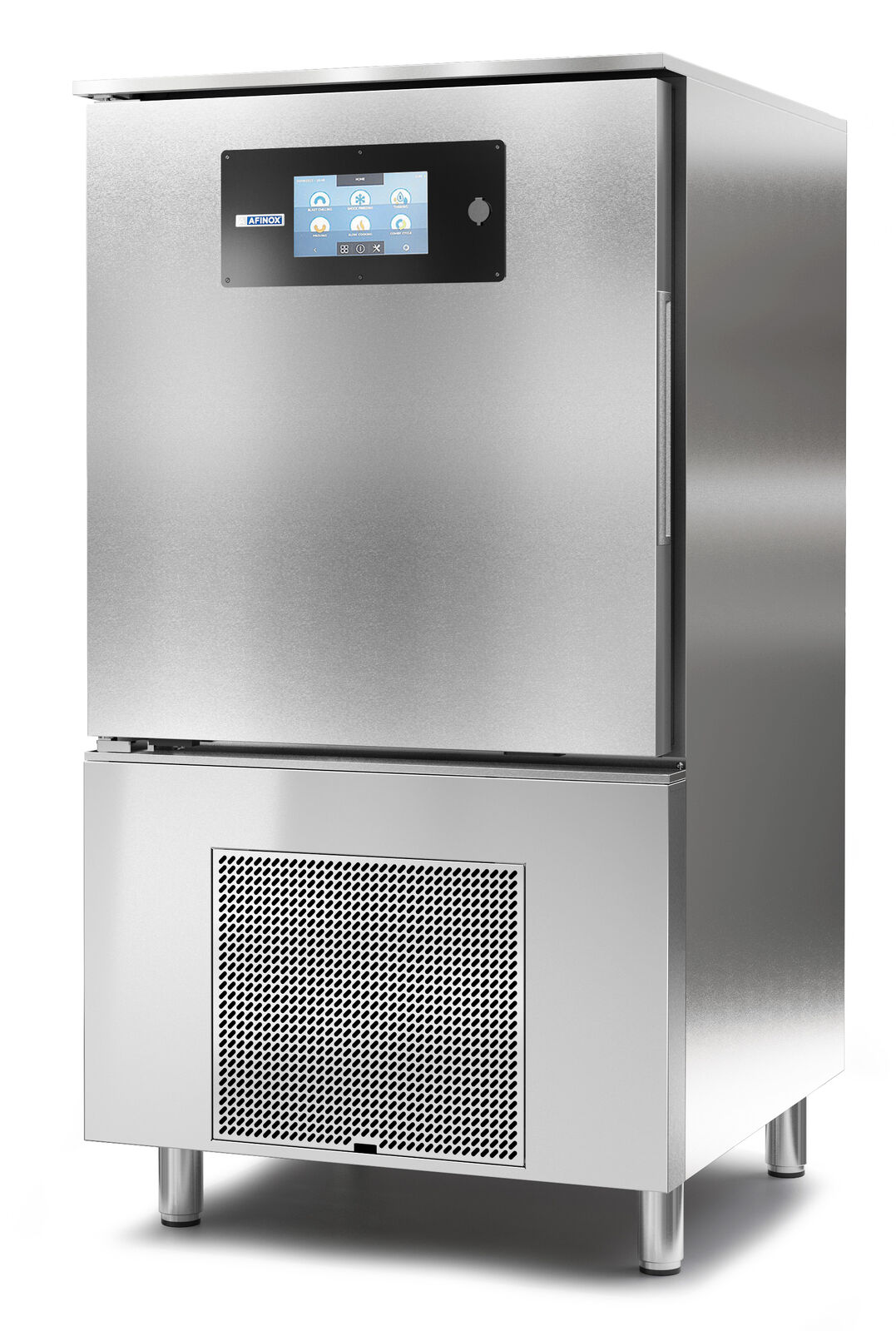

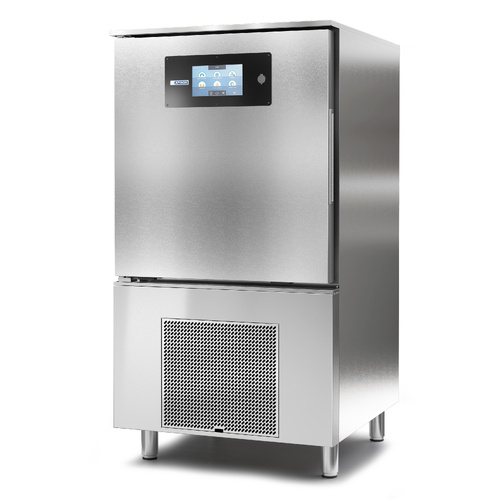

Afinox Infinity-X 20 All-In-One Gastronomy
20x GN1/1 / 10x GN2/1 All In One Blast Chiller, Shock Freezer, Slow Cooker, Prover and Thawer
Designed for professional kitchens, restaurants, hotels and catering operations, the Afinox Infinity-X 20 All-In-One Gastronomy combines blast chilling, shock freezing, thawing, slow cooking and proving in one versatile appliance.
Constructed from AISI 304 stainless steel, it accommodates up to 20 GN 1/1 trays or 10 GN 2/1 trays (65 mm height). The 9-inch touchscreen control system provides access to automatic and customisable manual cycles, supporting a range of professional food preparation requirements.
Engineered for demanding kitchen workflows, the Infinity-X 20 All-In-One offers a blast chilling yield of up to 50 kg and a shock freezing yield of up to 20 kg. Its multipoint core probe features four reading points, while humidity-controlled slow cooking and proving expand its capabilities beyond chilling and freezing.
Winning Features
- All-in-one functionality: Blast chilling, shock freezing, thawing, humidity-controlled slow cooking and humidity-controlled proving.
- Gastronomy tray capacity: Accommodates 20 GN 1/1 or 10 GN 2/1 trays, up to 65 mm high.
- Professional processing capacity: Blast chilling yield of 50 kg and shock freezing yield of 20 kg.
- Touchscreen control: 9-inch touchscreen with automatic and customisable manual cycles.
- Core temperature monitoring: Multipoint core probe with four reading points.
- Humidity-controlled operation: Supports humidity-controlled slow cooking and proving.
- Durable construction: AISI 304 stainless steel construction for professional foodservice environments.
- Flexible installation: Manufacturer-listed configurations include an integrated or remote condensing unit.
Versatile Food Preparation
The Infinity-X 20 All-In-One supports multiple stages of food preparation in a single appliance. In addition to blast chilling and shock freezing, it offers thawing, slow cooking with humidity control and proving with humidity control, helping professional kitchens manage different preparation processes.
Designed for Gastronomy Workflows
With capacity for 20 GN 1/1 or 10 GN 2/1 trays, the Infinity-X 20 is designed for professional gastronomy applications. Its touchscreen interface, multipoint core probe and configurable cycles provide practical control over food processing operations.
The Afinox Infinity-X 20 All-In-One Gastronomy also features
- Combined-cycle functionality.
- Multilevel function.
- Defrosting function.
- USB port for HACCP data download.
- SD card with tutorial videos.
- Removable filter.
- Standard GN 2/1 kit.
- R290 refrigerant.
- Optional EvoCloud, LED light, Tracer and heated core probe, subject to compatibility.
Installation note: The All-In-One humidity functions require a water connection. Shelves are not included as standard. The manufacturer states that the humidity kit is not compatible with a heated and/or wireless core probe.
```
(AX7AMI12I5SA001)
| Model | Infinity-X 20 All-In-One |
| Model Number | AX7AMI12I5SA001 |
| Dimensions | 870 x 974 x 1650 |
| Tray Compatibility and Capacity | 20x GN 1/1 or 10x GN2/1 |
| Tray Pitch | 35mm |
| Load Capacity (Blast Chilling +3°C) | 50kg |
| Loac Capacity (Shock Freezing -18°C) | 20kg |
| Power Supply | 230V / 1Ph / 50Hz |
| Nominal Power | 1386 Watts |
| Absorbed Current | 10.37 Amps |
| Net Weight | 163kg |
| Gross Weight | 183kg |
| Refrigerant | R290 |
