Model No: AX7AMI15I5SA004

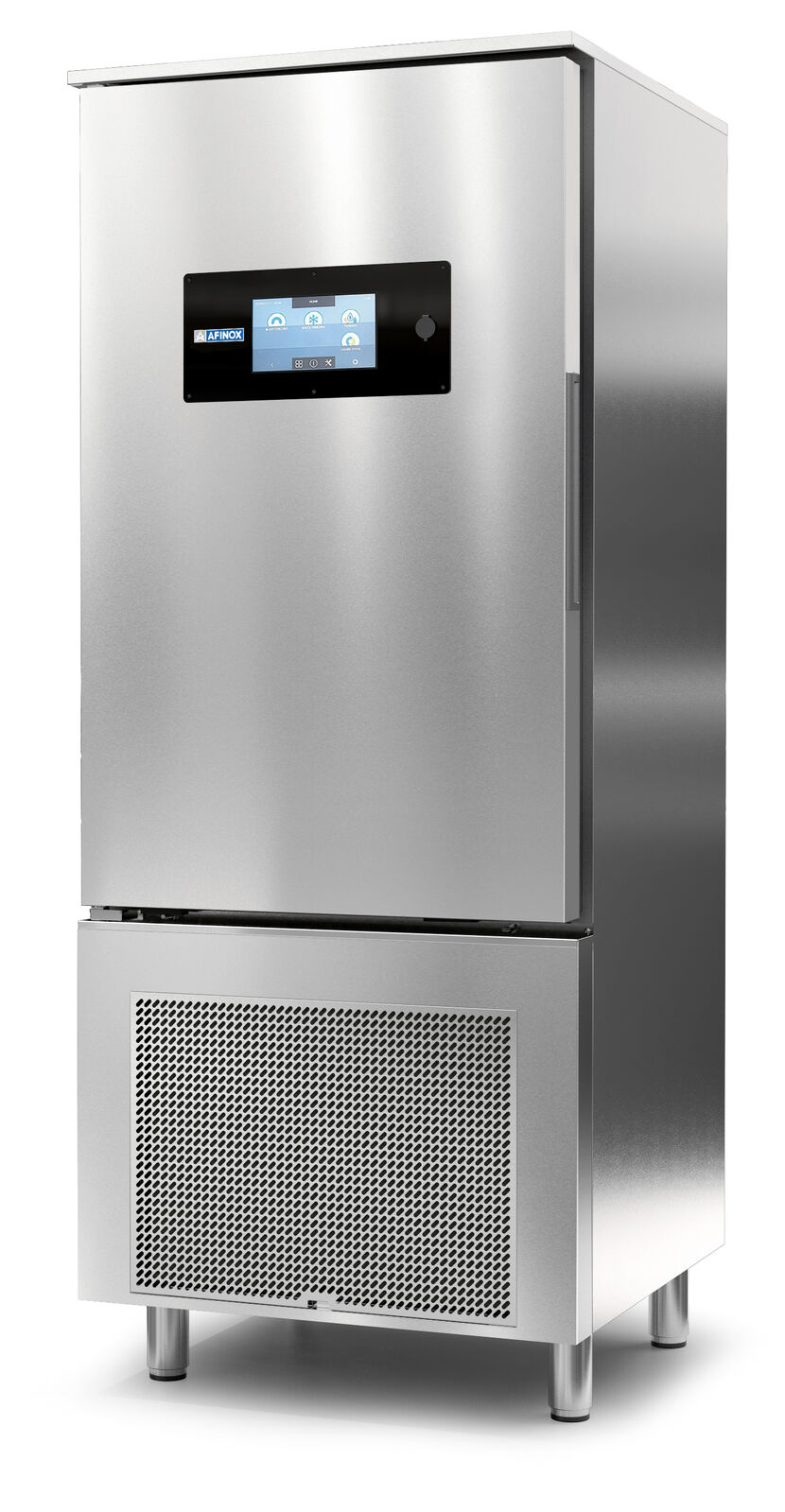

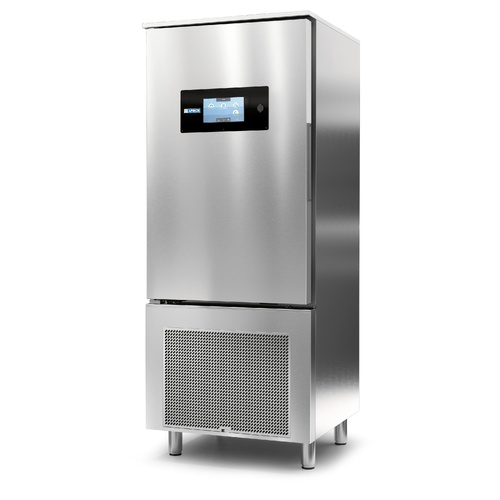

Afinox Infinity-X 15-P Start Pastry Bakery Blast Chiller / Shock Freezer
15x EN600x400 Blast Chiller / Shock Freezer
Designed for professional pastry and bakery kitchens, the Afinox Infinity-X 15-P Start Blast Chiller / Shock Freezer delivers controlled chilling and freezing for demanding food production environments.
Built with AISI 304 stainless steel construction, this unit accommodates EN 600 × 400 pastry trays across 15 tray positions. Its 9-inch touchscreen control system provides access to automatic and customisable manual cycles for professional food preparation.
Engineered for high-volume production, the Infinity-X 15-P Start offers a manufacturer-rated blast chilling yield of up to 70 kg and a shock freezing yield of up to 30 kg. A multipoint core probe with four reading points supports core temperature monitoring during processing.
Winning Features
- High-capacity processing: Manufacturer-rated blast chilling yield of 70 kg and shock freezing yield of 30 kg.
- Pastry and bakery format: Designed for EN 600 × 400 trays, with 15 tray positions as specified for this product.
- Touchscreen operation: 9-inch touchscreen control system.
- Customisable cycles: Automatic and manual programmes to suit different processing requirements.
- Core temperature monitoring: Multipoint core probe with four reading points.
- Professional construction: AISI 304 stainless steel construction.
- Flexible installation: Manufacturer documentation describes configurations with an integrated or remote condensing unit.
Efficient Chilling and Freezing
The Infinity-X 15-P Start is designed to support professional kitchens with blast chilling and shock freezing processes. Its stated processing yields provide a reference for production planning; actual cooling times and results depend on the composition and size of the food being processed.
Control for Professional Workflows
The 9-inch touchscreen provides access to automatic and customisable manual cycles. Additional functions include combined cycles, multilevel operation and defrosting, helping operators manage different processing requirements.
The Afinox Infinity-X 15-P Start also features
- Blast chilling and shock freezing cycles.
- Combined-cycle functionality.
- Multilevel function.
- Defrosting function.
- USB port for HACCP data download.
- SD card with tutorial videos.
- Removable filter.
- R290 refrigerant.
- Optional EvoCloud, LED light, Tracer and heated probe, subject to configuration.
Note: Shelves are not included as standard according to the manufacturer's technical sheet. Confirm the required tray guides and condensing-unit configuration when ordering.
```
(AX7AMI15I5SA004)
| Model | Infinity-X 15-P Start |
| Model Number | AX7AMI15I5SA004 |
| Dimensions | 790 x 839 x 1990 |
| Tray Compatibility and Capacity | 15x EN600x400 |
| Tray Pitch | 50mm |
| Load Capacity (Blast Chilling +3°C) | 70kg |
| Loac Capacity (Shock Freezing -18°C) | 30kg |
| Power Supply | 400V / 3Ph / 50Hz |
| Nominal Power | 2772 Watts |
| Absorbed Current | 10.37 Amps |
| Net Weight | 181kg |
| Gross Weight | 202kg |
| Refrigerant | R290 |
