Model No: AX9AMI80RT5SA01AA

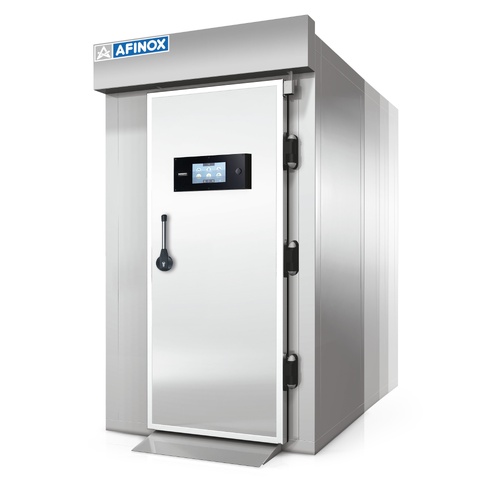

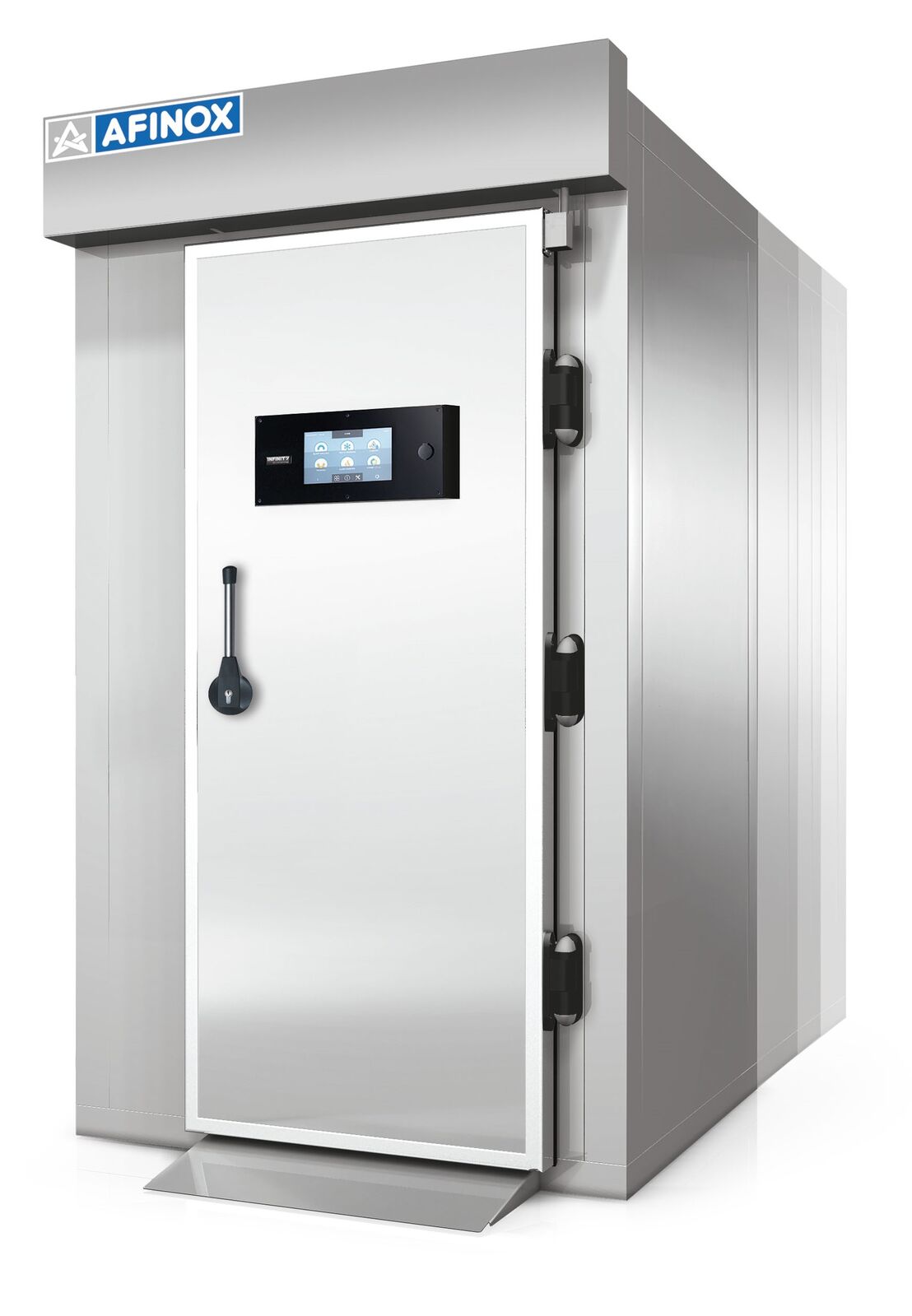

Afinox Infinity Evolution Roll-In 80 Start Blast Chiller / Shock Freezer
Roll In Blast Chiller / Shock Freezer with GN1/1, GN2/1 and EN400x600 Trolley Capacity
In Stock
(AX9AMI80RT5SA01AA)
| Model | Infinity Evolution Roll-In 80 Start |
| Model Number | AX9AMI80RT5SA01AA |
| Roll In Dimensions | 1390 x 3070 x 2545 |
| Remote Unit Dimensions | 3146 x x1560 x 1302 |
| Internal Dimensions | 780 x 2230 x 2010 |
| Remote Unit Power | 25HP |
| Trolley Capacity | 5 x GN1/1, 3 x GN2/1, 4 x EN400x600 |
| Load Capacity (Blast Chilling +3°C) | 500kg |
| Loac Capacity (Shock Freezing -18°C) | 450kg |
| Power Supply | 400V / 3Ph / 50Hz |
| Nominal Power | 14970 Watts |
| Absorbed Current | 71 Amps |
| Net Weight (Roll In / Remote Unit) | 772kg / 801kg |
| Gross Weight (Roll In / Remote Unit) | 1091kg / 1027kg |
| Refrigerant | R290 |
