Model No: AX9AMI60RT5SA01AA

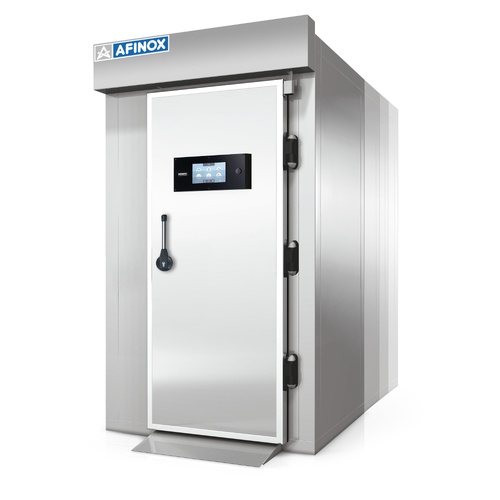

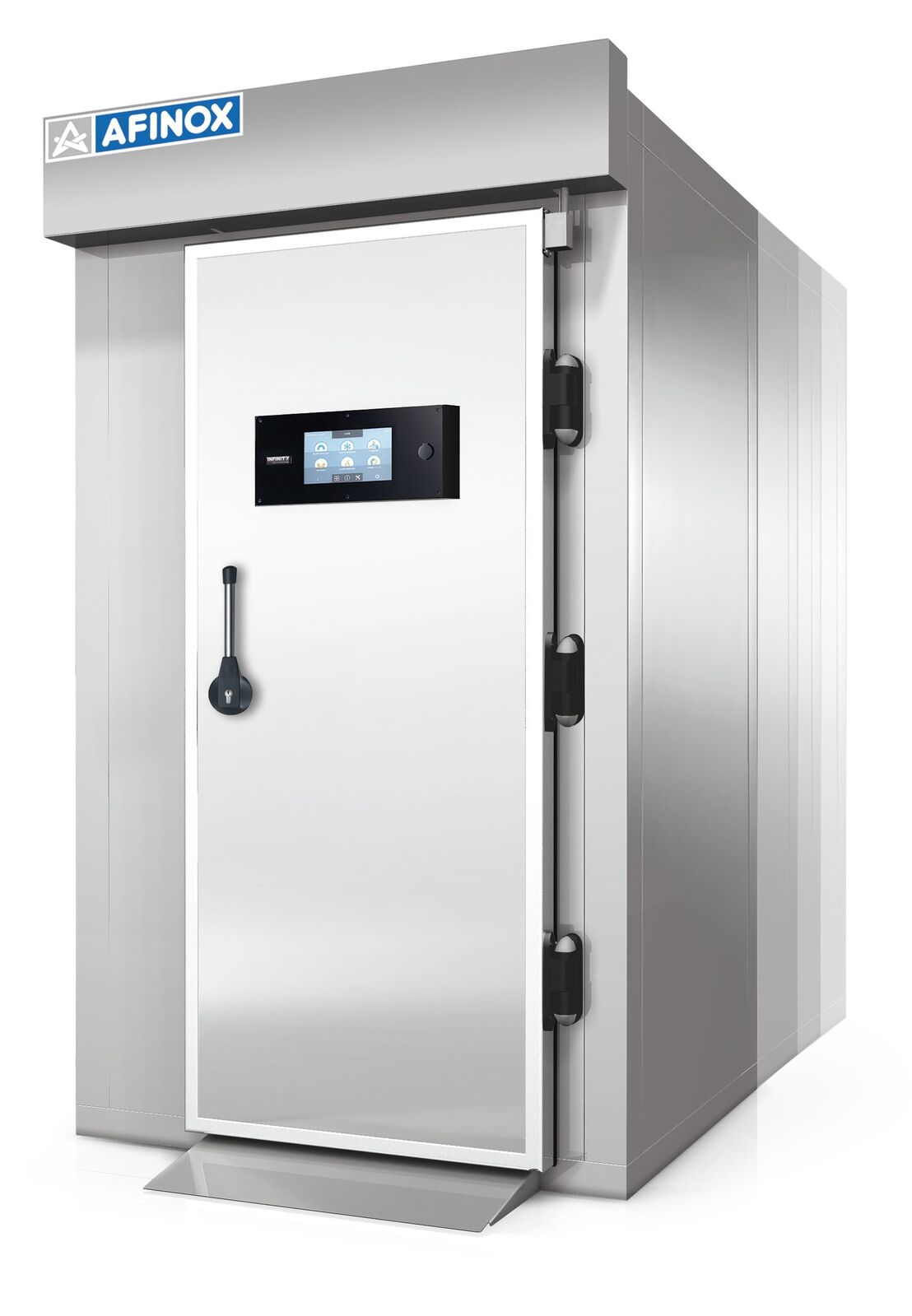

Afinox Infinity Evolution Roll-In 60 Start Blast Chiller / Shock Freezer
Roll In Blast Chiller / Shock Freezer with capacity for GN1/1, EN600x400, GN2/1 and EN600x800 Trolley systems
In Stock
(AX9AMI60RT5SA01AA)
| Model | Infinity Evolution Roll-In 60 Start |
| Model Number | AX9AMI60RT5SA01AA |
| Roll In Dimensions | 1390 x 2465 x 2545 |
| Remote Unit Dimensions | 2180 x 1170 x 1208 |
| Internal Dimensions | 780 x 1630 x 2010 |
| Remote Unit Power | 20HP |
| Trolley Capacity | 4 x GN1/1, 2 x GN2/1, 3 x EN400x600 |
| Load Capacity (Blast Chilling +3°C) | 400kg |
| Loac Capacity (Shock Freezing -18°C) | 350kg |
| Power Supply | 400V / 3Ph / 50Hz |
| Nominal Power | 12090 Watts |
| Absorbed Current | 62 Amps |
| Net Weight (Roll In / Remote Unit) | 352kg / 503kg |
| Gross Weight (Roll In / Remote Unit) | 992kg / 569kg |
| Refrigerant | R290 |
