Model No: AX9AMI40RT5SA02AA

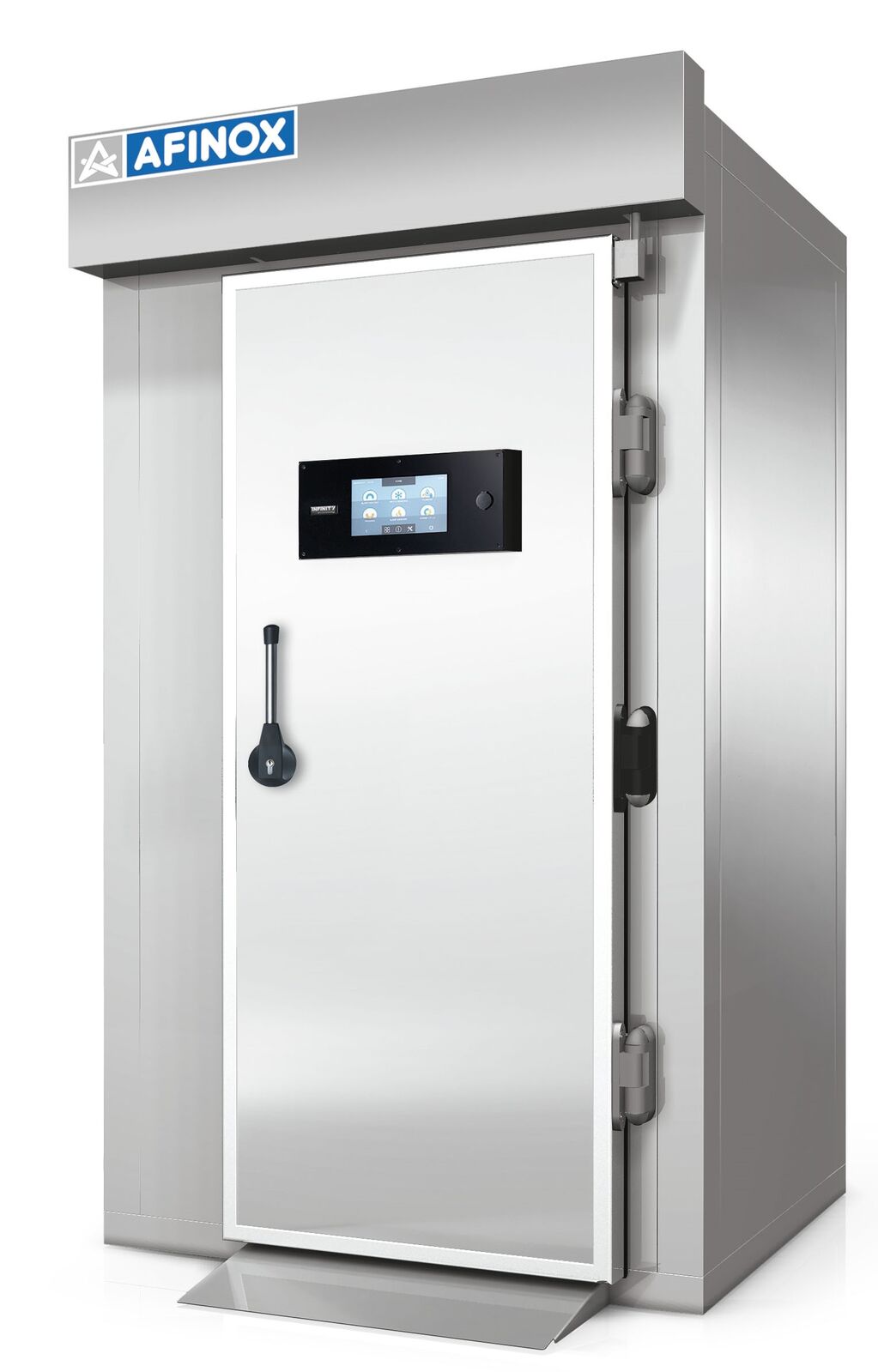

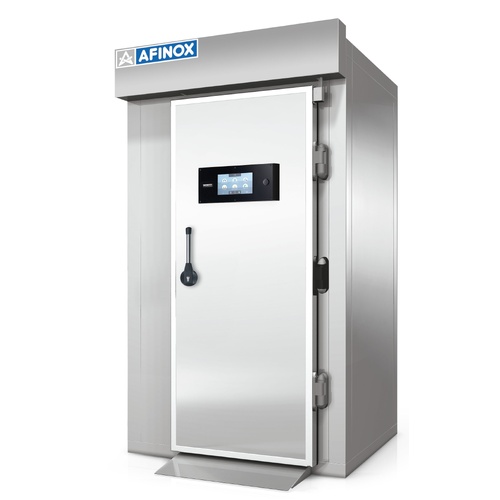

Afinox Infinity Evolution Roll-In 40 Start Blast Chiller / Shock Freezer
Roll in Blast Chiller / Shock Freezer with Capacity for GN1/1, GN2/1, EN400x600 and EN600x800 Trolley Systems
In Stock
(AX9AMI40RT5SA02AA)
| Model | Infinity Evolution Roll-In 40 Start |
| Model Number | AX9AMI40RT5SA02AA |
| Roll In Dimensions | 1390 x 1532 x 2490 |
| Remote Unit Dimensions | 1705 x 945 x 1500 |
| Internal Dimensions | 780 x 1015 x 2010 |
| Remote Unit Power | 9HP |
| Trolley Capacity | 2 x GN1/1, 1 x GN2/1, 2 x EN400x600, 1 x EN600x800 |
| Load Capacity (Blast Chilling +3°C) | 200kg |
| Loac Capacity (Shock Freezing -18°C) | 175kg |
| Power Supply | 400V / 3Ph / 50Hz |
| Nominal Power | 5420 Watts |
| Absorbed Current | 24 Amps |
| Net Weight (Roll In / Remote Unit) | 379kg / 455kg |
| Gross Weight (Roll In / Remote Unit) | 699kg / 526kg |
| Refrigerant | R290 |
