Model No: AX9AMI40RT5OA02AA

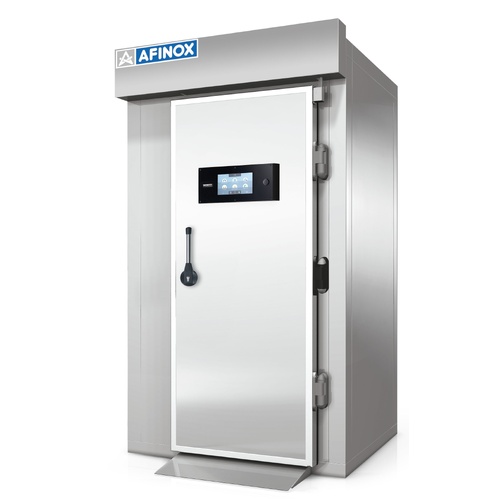

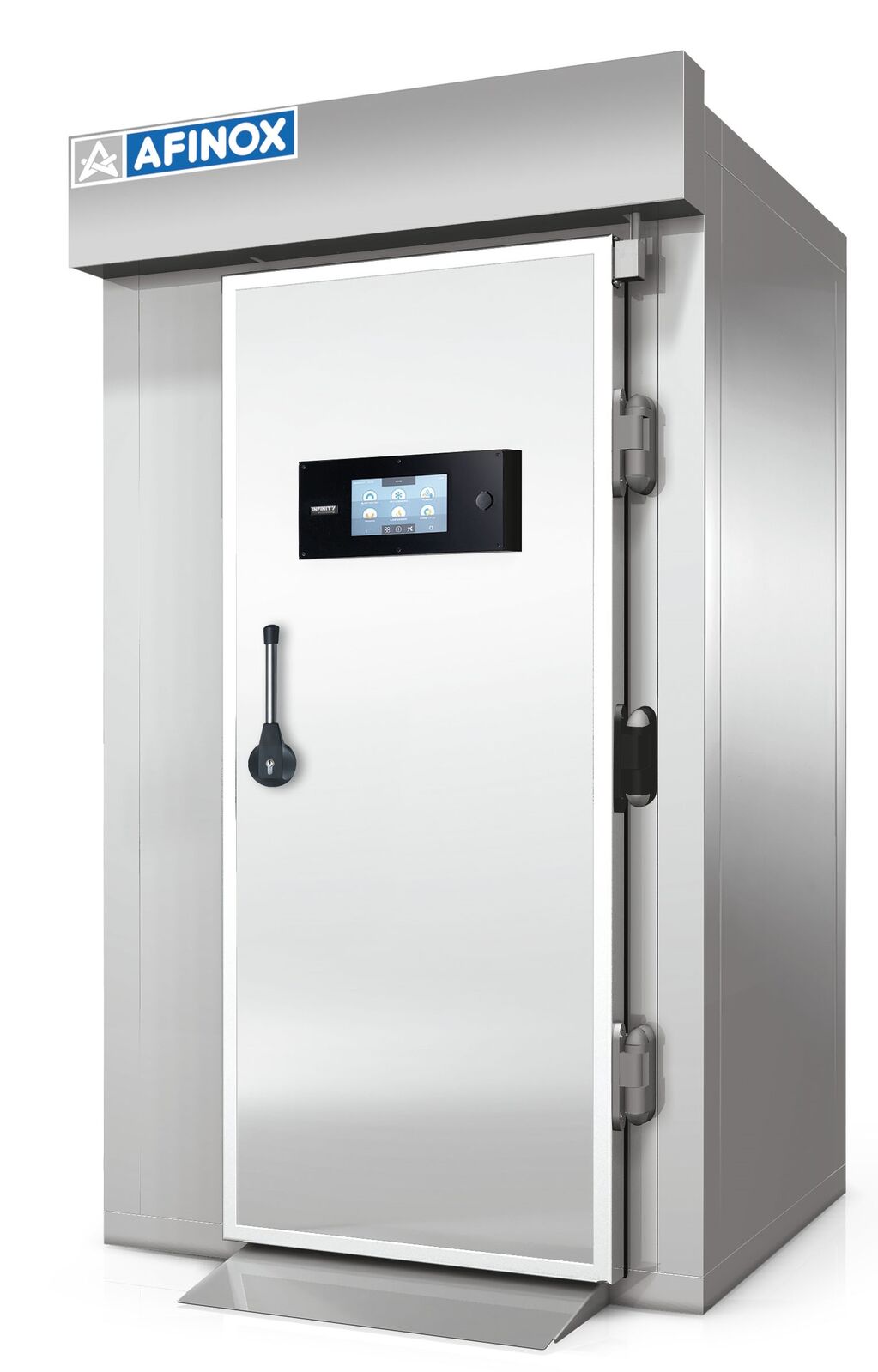

Afinox Infinity Evolution Roll In 40 All-In-One
All-In-One Roll In Blast Chiller, Shock Freezer, Slow Cooker, Prover and Thawer with Capacity for GN1/1, GN2/1, EN600x400 and EN600x800 Trolley Systems
Designed for commercial kitchens, catering operations and food production facilities requiring high-volume food processing, the Afinox Infinity Evolution Roll In 40 All-In-One combines blast chilling, shock freezing, thawing, slow cooking and proving in a roll-in cabinet designed for trolley-based workflows.
Constructed from AISI 304 stainless steel, it features an integrated condensing unit, a stainless-steel access ramp and a 9-inch touchscreen control system. Automatic programmes and customisable manual cycles support flexible operation across different production requirements.
Engineered for professional Cook & Chill workflows, the Infinity Evolution Roll In 40 All-In-One supports blast chilling, shock freezing, thawing, slow cooking, proving, combined cycles, multilevel operation and defrosting. A four-point multipoint core probe supports core-temperature monitoring, while USB HACCP data download helps with food-process record keeping.
Winning Features
- All-In-One Functionality: Supports blast chilling, shock freezing, thawing, slow cooking and proving.
- Roll-In Trolley Design: Designed for trolley-based loading, with a stainless-steel ramp.
- Touchscreen Controls: 9-inch touch control system with automatic and customisable manual cycles.
- Core Temperature Monitoring: Multipoint core probe with four reading points.
- HACCP Data Download: USB connection for downloading HACCP data.
- Flexible Cycle Management: Combined cycles, multilevel function and defrosting function.
Designed for High-Volume Production
With a listed blast chilling yield of 110 kg and shock freezing yield of 95 kg per cycle, the matching Infinity 40 Compact All-In-One catalogue model is intended for demanding professional food preparation and production environments.
The Afinox Infinity Evolution Roll In 40 All-In-One also features
- AISI 304 stainless-steel construction.
- Integrated condensing unit, with a disassembled configuration available on request in the catalogue listing.
- Trolley compatibility listed for 2 GN1/1 trolleys or 1 EN400x600 trolley, and 1 GN2/1 trolley or 1 EN600x800 trolley.
- Optional EvoCloud and Tracer systems, subject to configuration.
```
(AX9AMI40RT5OA02AA)
| Model | Infinity Evolution Roll In 40 All-In-One |
| Model Number | AX9AMI40RT5OA02AA |
| Roll In Dimensions | 1390 x 1532 x 2490 |
| Remote Unit Dimensions | 1705 x 945 x 1500 |
| Internal Dimensions | 780 x 1015 x 2010 |
| Remote Unit Power | 9HP |
| Trolley Capacity | 2x GN1/1, 1x GN2/1, 1x EN600x400, 1x EN600x800 |
| Load Capacity (Blast Chilling +3°C) | 200kg |
| Loac Capacity (Shock Freezing -18°C) | 175kg |
| Power Supply | 400V / 3Ph / 50Hz |
| Nominal Power | 5420 Watts |
| Absorbed Current | 24 Amps |
| Net Weight (Roll In / Remote Unit) | 669kg / 455kg |
| Refrigerant | R290 |
