Model No: AX9AMI20RT5SA02AA

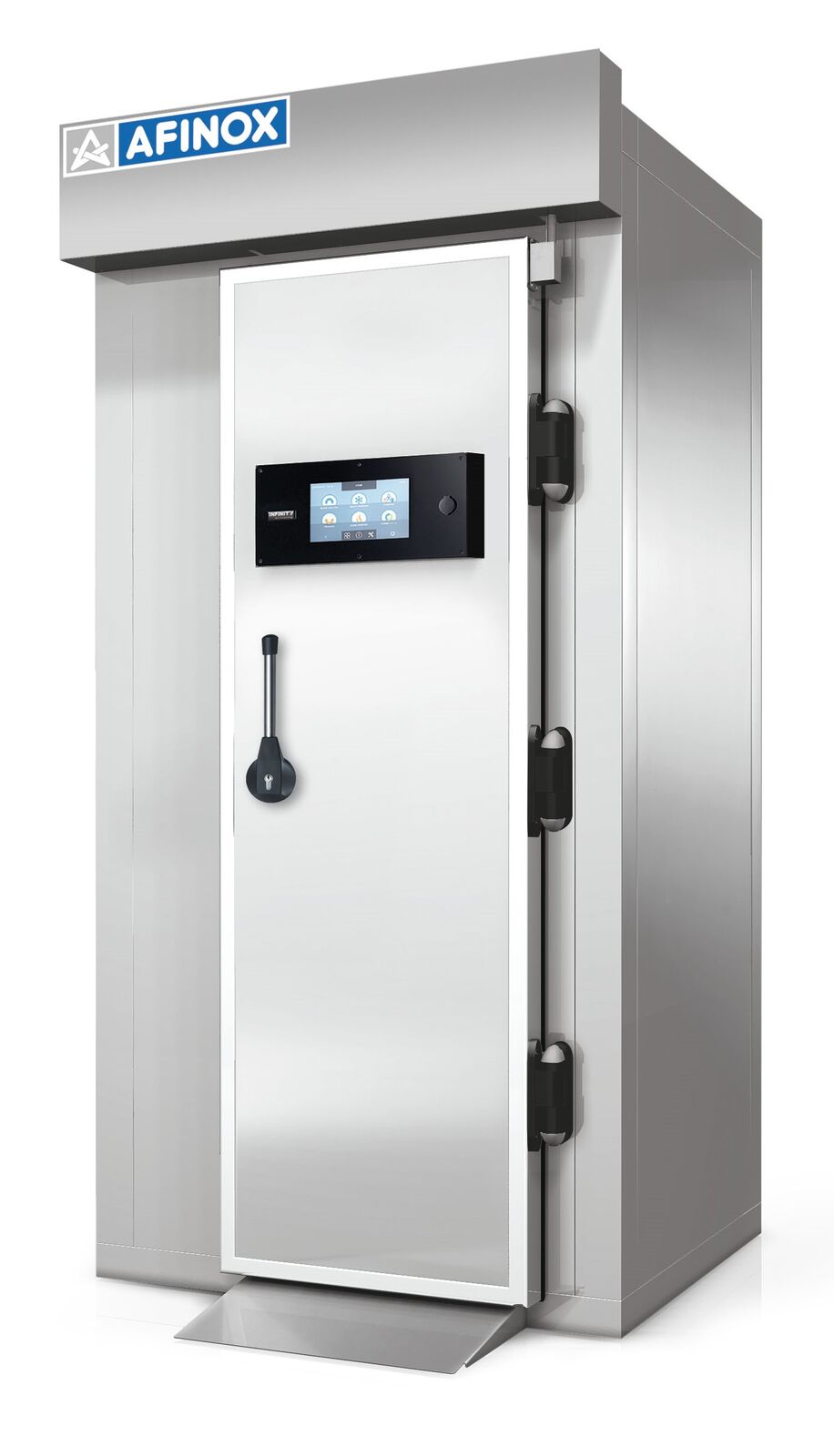

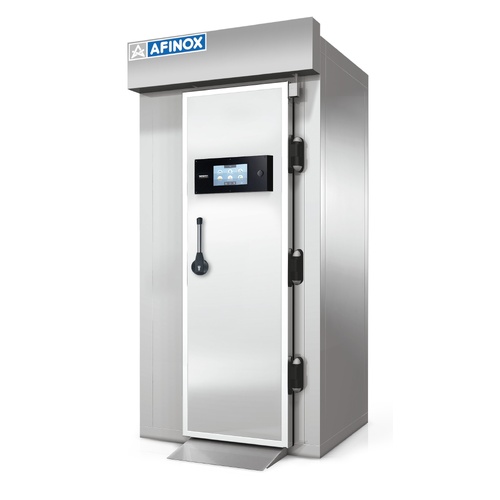

Afinox Infinity Evolution Roll-In 20 Start Blast Chiller / Shock Freezer
GN 1/1 and EN400x600 Roll In Blast Chiller / Shock Freezer
Designed for commercial kitchens, catering operations and large-scale food production facilities, the Afinox Infinity Evolution Roll-In 20 Start Blast Chiller / Shock Freezer delivers high-capacity blast chilling and shock freezing for professional Cook & Chill workflows.
Constructed from AISI 304 stainless steel, this roll-in system is designed for trolley-based food production. It features a stainless-steel access ramp, a 9-inch touchscreen control system and a multipoint core probe with four reading points.
Engineered for demanding food preparation environments, the Infinity Evolution 20 Start supports blast chilling, shock freezing, thawing and combined cycles. Customisable automatic and manual programmes, multilevel operation and a defrosting function provide flexibility for professional production requirements.
Winning Features
- High-Capacity Processing: Listed blast-chilling yield of 110 kg and shock-freezing yield of 95 kg per cycle with the specified 4 HP configuration.
- Roll-In Design: Designed for trolley-based loading and handling in commercial food production environments.
- Touchscreen Control: 9-inch touchscreen for operating available cycles.
- Core Temperature Monitoring: Multipoint core probe with four reading points.
- Customisable Cycles: Automatic and manual programmes for blast chilling, shock freezing, thawing and combined cycles.
- HACCP Data Export: USB connection for downloading HACCP data, plus an SD card with tutorial videos.
- Stainless-Steel Construction: AISI 304 stainless steel cabinet and stainless-steel ramp.
Designed for Professional Cook & Chill Workflows
The Infinity Evolution 20 Start supports food production workflows that require rapid chilling, shock freezing and thawing. Its roll-in format accommodates compatible trolley systems, helping kitchens manage large batches of prepared food.
The Afinox Infinity Evolution Roll-In 20 Start also features
- Multilevel operation and defrosting function.
- Connection to an external condensing unit.
- Maximum shelf configuration listed as 20 GN1/1 or 20 EN600x400 shelves, 40 mm high.
- Optional EvoCloud, LED light, steriliser, Tracer, Supervisor, Wi-Fi probe, heated probe and tubing/cable kit, subject to configuration.
- Trolleys are not included.
```
(AX9AMI20RT5SA02AA)
| Model | Infinity Evolution Roll-In 20 Start |
| Model Number | AX9AMI20RT5SA02AA |
| Roll In Dimensions | 1190 x 1332 x 2490 |
| Remote Unit Dimensions | 1352 x 760 x 892 |
| Remote Unit Power | 4HP |
| Trolley Capacity | 1 x GN1/1, 1 x EN400x600 |
| Load Capacity (Blast Chilling +3°C) | 110kg |
| Loac Capacity (Shock Freezing -18°C) | 95kg |
| Power Supply | 400V / 3Ph / 50Hz |
| Nominal Power | 3250 Watts |
| Absorbed Current | 21 Amps |
| Net Weight (Roll In / Remote Unit) | 113kg / 256kg |
| Gross Weight (Roll In / Remote Unit) | 592kg / 285kg |
| Refrigerant | R290 |
Designed for large-scale commercial kitchens, catering operations and food production facilities, the Afinox Infinity Evolution Roll-In 40 Start Blast Chiller / Shock Freezer provides high-capacity blast chilling and shock freezing for professional Cook & Chill workflows.
Constructed from AISI 304 stainless steel, this roll-in cabinet is supplied disassembled for connection to an external condensing unit. It features a stainless-steel access ramp, a 9-inch touchscreen control system and a multipoint core probe with four reading points.
Engineered for demanding food production environments, the Infinity Evolution 40 Start supports blast chilling, shock freezing, thawing and combined cycles. Customisable automatic and manual programmes, multilevel operation and a defrosting function provide flexibility for professional kitchen workflows.
Winning Features
- High-Capacity Processing: Indicative blast-chilling yield of 200 kg and shock-freezing yield of 175 kg per cycle with the 9 HP configuration.
- Roll-In Design: Accommodates up to 40 GN1/1 or 40 EN600x400 shelves, each 40 mm high.
- Touchscreen Controls: 9-inch touchscreen control system for managing available cycles.
- Core Temperature Monitoring: Multipoint core probe with four reading points.
- Customisable Cycles: Automatic and manual programmes for blast chilling, shock freezing, thawing and combined cycles.
- HACCP Data Export: USB connection for downloading HACCP data, plus an SD card with tutorial videos.
- Professional Construction: AISI 304 stainless-steel cabinet with a stainless-steel ramp.
Designed for High-Volume Food Production
With its roll-in format and high-capacity processing performance, the Infinity Evolution 40 Start is designed to support large batches of prepared food in commercial kitchens and production facilities. Its external condensing-unit configuration should be considered when planning installation.
The Afinox Infinity Evolution Roll-In 40 Start also features
- Multilevel operation and defrosting function.
- External condensing unit required; supplied disassembled.
- Optional EvoCloud, tubing and cable kit, LED light, steriliser, Tracer, Supervisor, Wi-Fi probe and heated probe, subject to configuration.
- Trolleys are not included.
