Model No: AX9AMI20RT5OA02AA

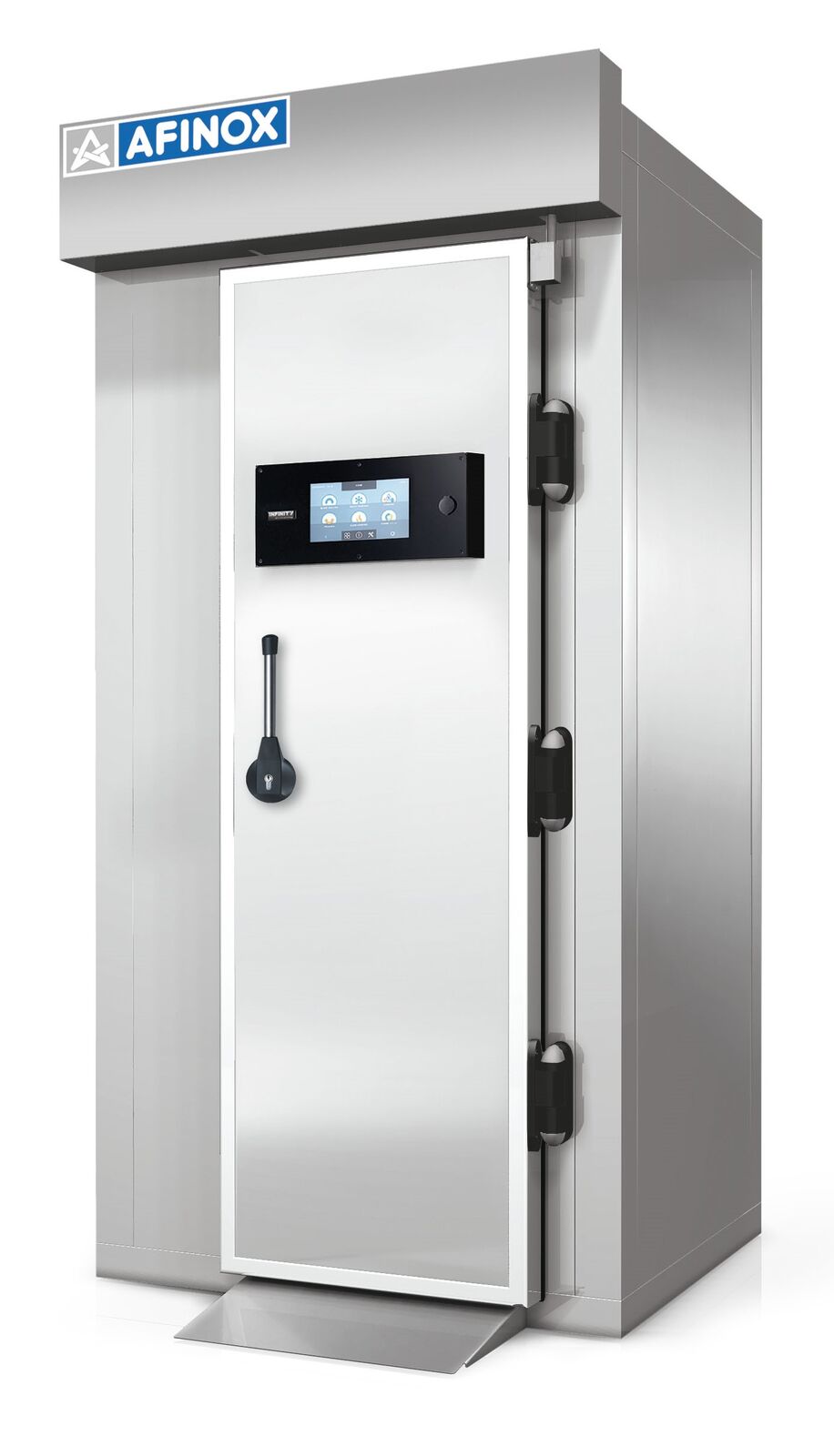

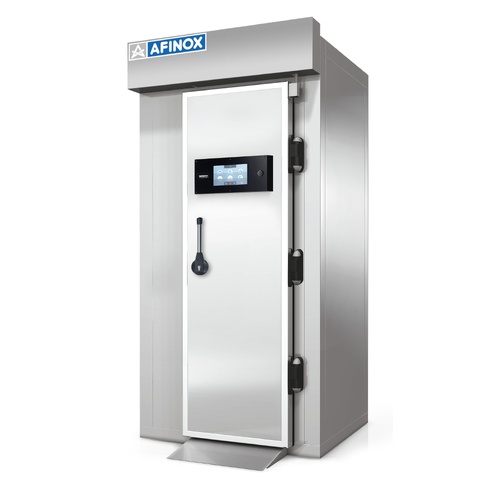

Afinox Infinity Evolution Roll-In 20 All In One
All In One GN 1/1 and EN400x600 Roll In Shock Freezer, Blast Chiller, Slow Cooker, Prover and Thawer
Designed for commercial kitchens, catering operations and large-scale food production facilities, the Afinox Infinity Evolution 20 All-In-One Roll-In Blast Chiller / Shock Freezer combines blast chilling, shock freezing, thawing, proving and slow cooking in a professional roll-in cabinet.
Constructed from AISI 304 stainless steel, this system is designed for trolley-based food production workflows. It features a 9-inch touchscreen control panel and a multipoint core probe with four temperature reading points for monitoring food temperatures during processing.
Engineered to support the Cook & Chill process, the Infinity 20 All-In-One offers configurable cycles for blast chilling, shock freezing, thawing, proving, slow cooking and combined operations. Its roll-in design supports efficient handling of prepared food within professional kitchens and production environments.
Winning Features
- All-In-One Functionality: Combines blast chilling, shock freezing, thawing, proving and slow cooking.
- High-Volume Processing: Listed blast-chilling yield of 110 kg and shock-freezing yield of 95 kg per cycle.
- Roll-In Design: Designed for trolley-based loading and food production workflows.
- Touchscreen Controls: 9-inch touchscreen control panel for managing operating cycles.
- Core Temperature Monitoring: Multipoint core probe with four temperature reading points.
- Stainless-Steel Construction: AISI 304 stainless steel for professional food-processing environments.
Supporting the Complete Cook & Chill Process
By combining cold-processing cycles with slow cooking and proving functions, the Infinity 20 All-In-One supports a range of food preparation stages within one system. This helps professional kitchens organise production around their operational requirements.
The Afinox Infinity Evolution 20 All-In-One also features
- Blast chilling and shock freezing cycles.
- Thawing cycle.
- Proving and slow cooking functions.
- Combined cycle functionality.
- Compatibility with the trolley format listed in the technical documentation: 1 GN1/1 or 1 EN400x600 trolley.
```
(AX9AMI20RT5OA02AA)
| Model | Infinity Evolution Roll-In 20 All In One |
| Model Number | AX9AMI20RT5OA02AA |
| Roll In Dimensions | 1190 x 1332 x 2490 |
| Remote Unit Dimensions | 1352 x 760 x 892 |
| Remote Unit Power | 4HP |
| Trolley Capacity | 1 x GN1/1, 1 x EN400x600 |
| Load Capacity (Blast Chilling +3°C) | 110kg |
| Loac Capacity (Shock Freezing -18°C) | 95kg |
| Power Supply | 400V / 3Ph / 50Hz |
| Nominal Power | 3250 Watts |
| Absorbed Current | 21 Amps |
| Net Weight (Roll In / Remote Unit) | 113kg / 256kg |
| Gross Weight (Roll In / Remote Unit) | 592kg / 284kg |
| Refrigerant | R290 |
