Model No: AX9AMI120RTSA01AA

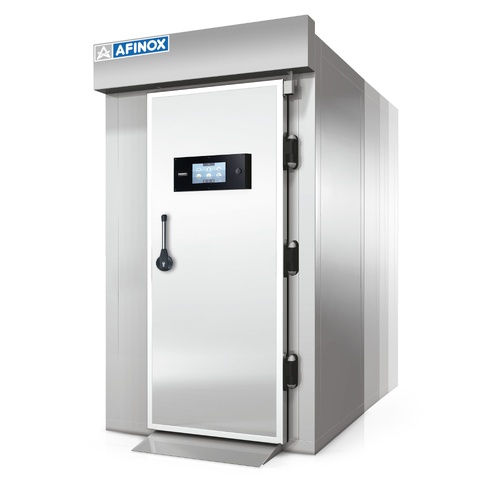

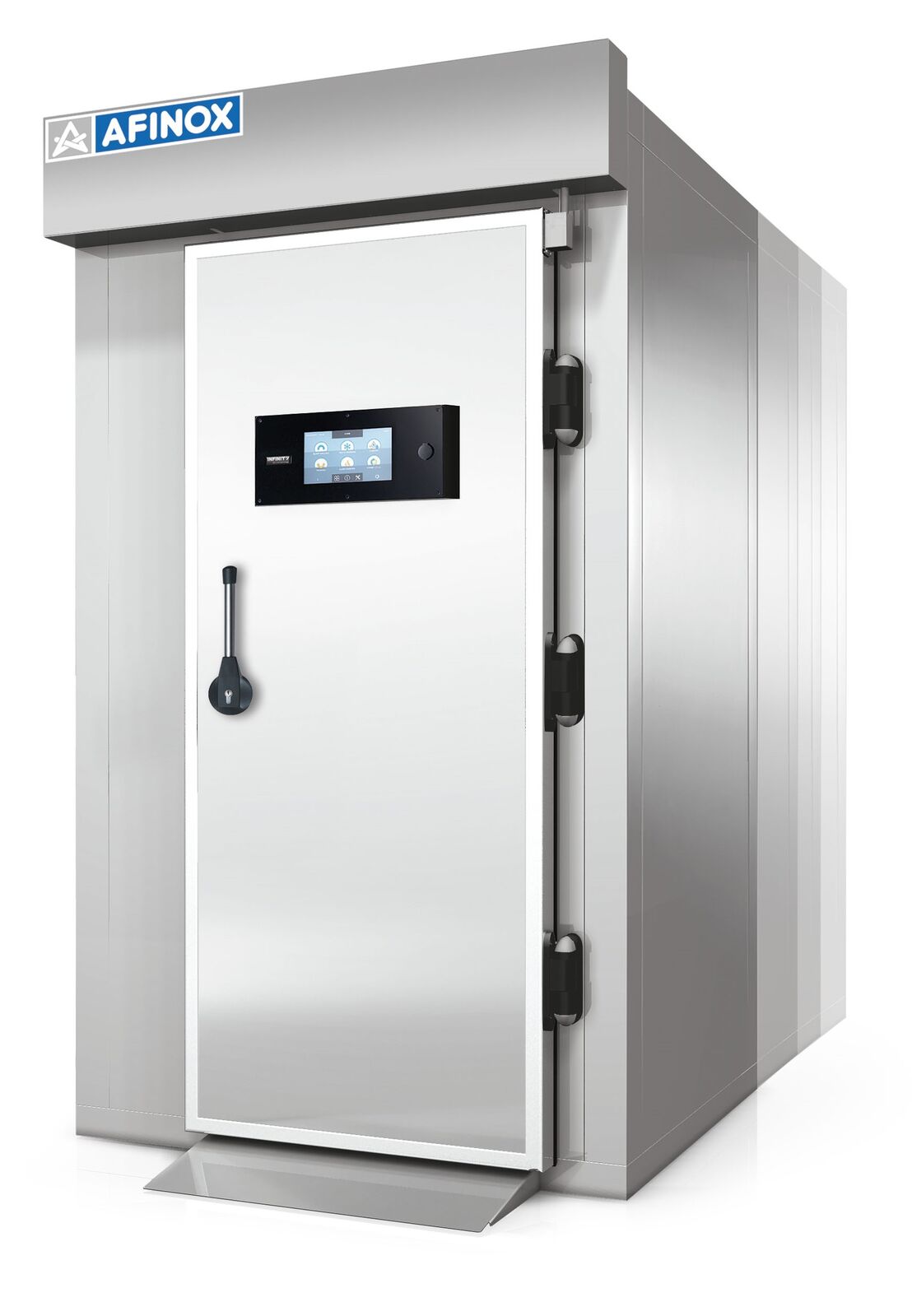

Afinox Infinity Evolution Roll-In 120 Start Blast Chiller / Shock Freezer
Roll in capacity for 8 x GN1/1, 5 x GN2/1 or 6 x EN400x600 Trolley
Designed for large-scale food production, catering operations and commercial food preparation facilities, the Afinox Infinity Evolution Roll-In 120 Start Blast Chiller / Shock Freezer supports high-volume blast chilling and shock freezing for professional Cook & Chill workflows.
Constructed from AISI 304 stainless steel, this roll-in system is designed for trolley-based production environments and features a 9-inch touchscreen control panel, a multipoint core probe with four temperature reading points, and customisable automatic cycles.
Engineered for demanding production requirements, the Infinity Evolution Roll-In 120 Start supports blast chilling, shock freezing, defrosting, storage and multilevel cycles. Its pass-through roll-in configuration is designed for large-capacity trolley handling, with the model supplied for connection to an external condensing unit.
Winning Features
- High-Volume Processing: Listed blast-chilling yield of up to 700 kg and shock-freezing yield of up to 650 kg per cycle.
- Roll-In Trolley System: Designed for large-scale production using compatible trolley systems.
- Touchscreen Control: 9-inch touchscreen control panel positioned at the front, above the door.
- Core Temperature Monitoring: Multipoint core probe with four temperature reading points.
- Flexible Cycle Management: Customisable automatic cycles, multilevel operation and defrosting.
- Professional Construction: AISI 304 stainless-steel construction for commercial food production environments.
Built for Large-Scale Food Production
With a listed capacity of 120 GN1/1 or EN600x400 trolley positions across the range, the Infinity 120 Start is intended for operations requiring high throughput and organised trolley-based handling. Actual trolley compatibility should be confirmed against the selected configuration.
The Afinox Infinity Evolution Roll-In 120 Start also features
- Blast chilling and shock freezing cycles.
- Storage and multilevel cycles.
- Defrosting function, including hot-gas defrosting during the conservation phase as described in the current catalogue range.
- USB connection for HACCP data download and SD card with tutorial videos, as listed for the Roll-In range.
- Optional EvoCloud, Tracer, Supervisor, wireless probe, heated probe and trolley accessories, subject to configuration.
```
(AX9AMI120RTSA01AA)
| Model | Infinity Evolution Roll-In 120 Start |
| Model Number | AX9AMI120RTSA01AA |
| Roll In Dimensions | 1390 x 4070 x 2545 |
| Remote Unit Dimensions | 2800 x 1300 x 2212 |
| Internal Dimensions | 780 x 3230 x 2010 |
| Remote Unit Power | 40HP |
| Trolley Capacity | 8 x GN1/1, 5 x GN2/1, 6 x EN400x600 |
| Load Capacity (Blast Chilling +3°C) | 700kg |
| Loac Capacity (Shock Freezing -18°C) | 650kg |
| Power Supply | 400V / 3Ph / 50Hz |
| Nominal Power | 22400 Watts |
| Absorbed Current | 105 Amps |
| Net Weight (Roll In / Remote Unit) | 1407kg / 1094kg |
| Gross Weight (Roll In / Remote Unit) | 1762kg / 1251kg |
| Refrigerant | R290 |
