Model No: AX9AMI100RTSA01AA

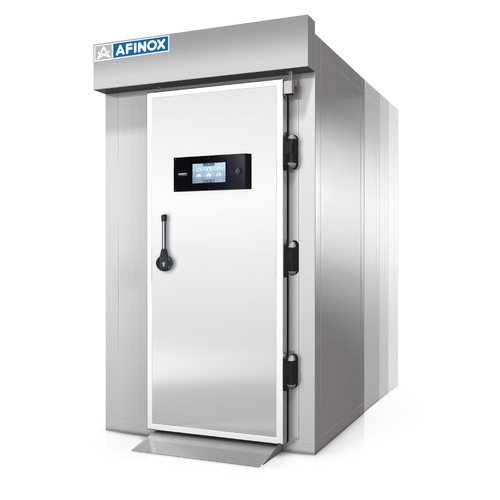

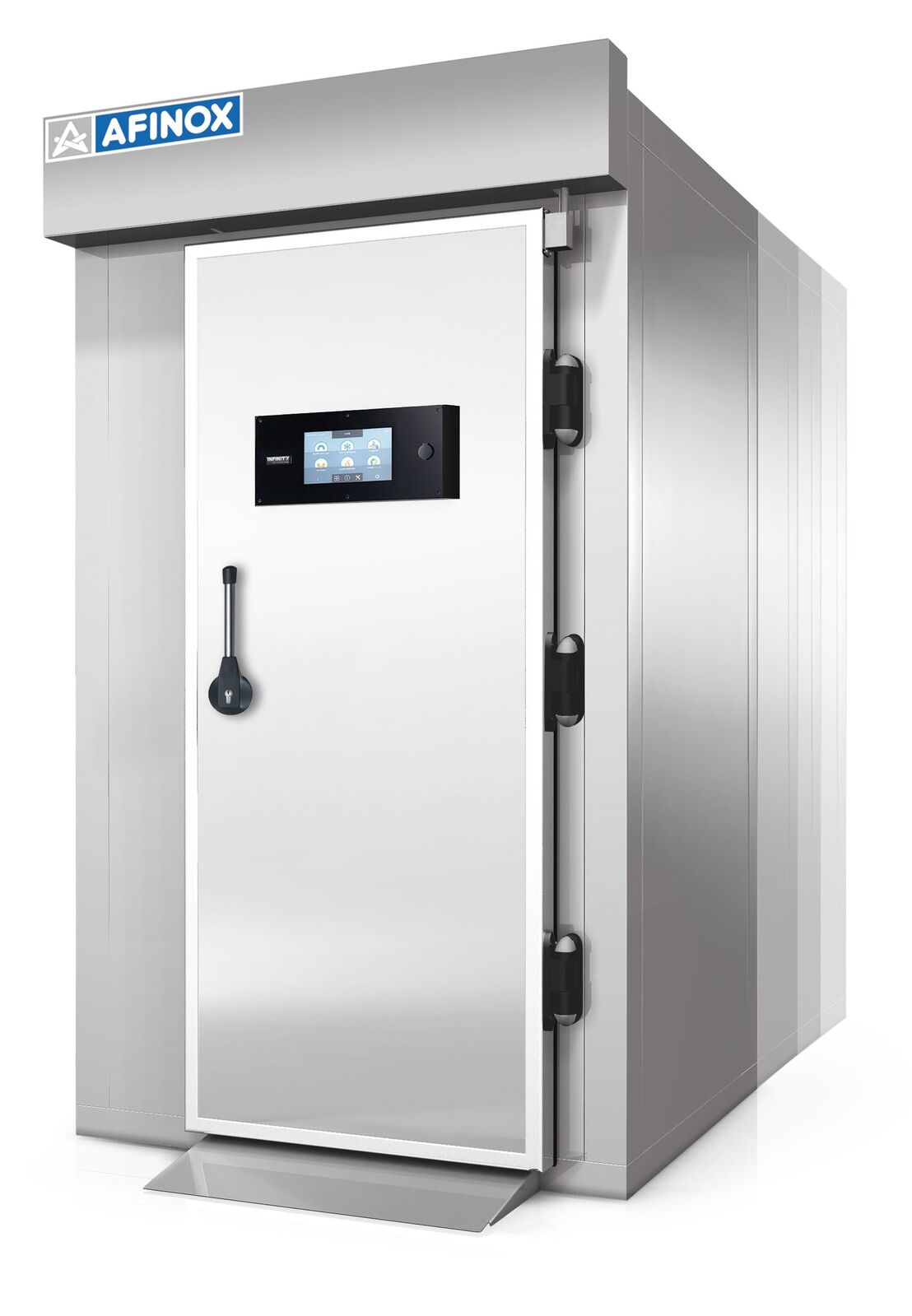

Afinox Infinity Evolution Roll-In 100 Start Blast Chiller / Shock Freezer

Roll in capacity for GN1/1, GN2/1 and EN400x600 Trolley

For chefs and kitchen professionals who demand high-capacity performance and efficiency, the Afinox Infinity Evolution Roll-In 100 START blast chiller delivers dependable blast chilling and shock freezing performance for high-demand professional kitchen operations.


Designed to support safe food handling and consistent food production, it features a roll-in configuration for trolley loading, with capacity for 6 GN 1/1, 5 EN 400 x 600, or 4 GN 2/1 trolleys. The unit provides a 600 kg blast chilling capacity and 550 kg shock freezing capacity.

Engineered for large-scale production and efficient kitchen workflows, the Infinity Evolution Roll-In 100 START provides the capacity and performance required by busy commercial kitchens, central production facilities and catering operations.

Winning Features

  • 600 kg blast chilling capacity
  • 550 kg shock freezing capacity
  • Roll-in trolley loading configuration
  • 6 GN 1/1 trolley capacity
  • 5 EN 400 x 600 trolley capacity
  • 4 GN 2/1 trolley capacity
  • Designed for high-volume professional food production
  • 400 V / 3 Phase / 50 Hz power supply

Engineered for high-capacity production

Designed for demanding food production environments, the Infinity Evolution Roll-In 100 START provides high-capacity blast chilling and shock freezing performance while supporting efficient trolley-based kitchen workflows.

The Afinox Infinity Evolution Roll-In 100 START also features

  • Blast chilling function
  • Shock freezing function
  • 6 GN 1/1 trolley capacity
  • 5 EN 400 x 600 trolley capacity
  • 4 GN 2/1 trolley capacity
  • 600 kg blast chilling capacity
  • 550 kg shock freezing capacity

(AX9AMI100RTSA01AA)

Model Infinity Evolution Roll-In 100 Start
Model Number AX9AMI100RTSA01AA
Roll In Dimensions  1390 x 3470 x 2545
Remote Unit Dimensions  3146 x 1560 x 1302
Internal Dimensions  780 x 2630 x 2010
Remote Unit Power  30HP
Trolley Capacity  6 x GN1/1, 4 x GN2/1, 5 x EN400x600
Load Capacity (Blast Chilling +3°C) 600kg
Loac Capacity (Shock Freezing -18°C)  550kg
Power Supply 400V / 3Ph / 50Hz
Nominal Power 18460 Watts
Absorbed Current 87 Amps
Net Weight (Roll In / Remote Unit) 700kg / 780kg
Gross Weight (Roll In / Remote Unit) 1375kg / 1057kg
Refrigerant R290
