Model No: AX9AMI40HT5SA90AA

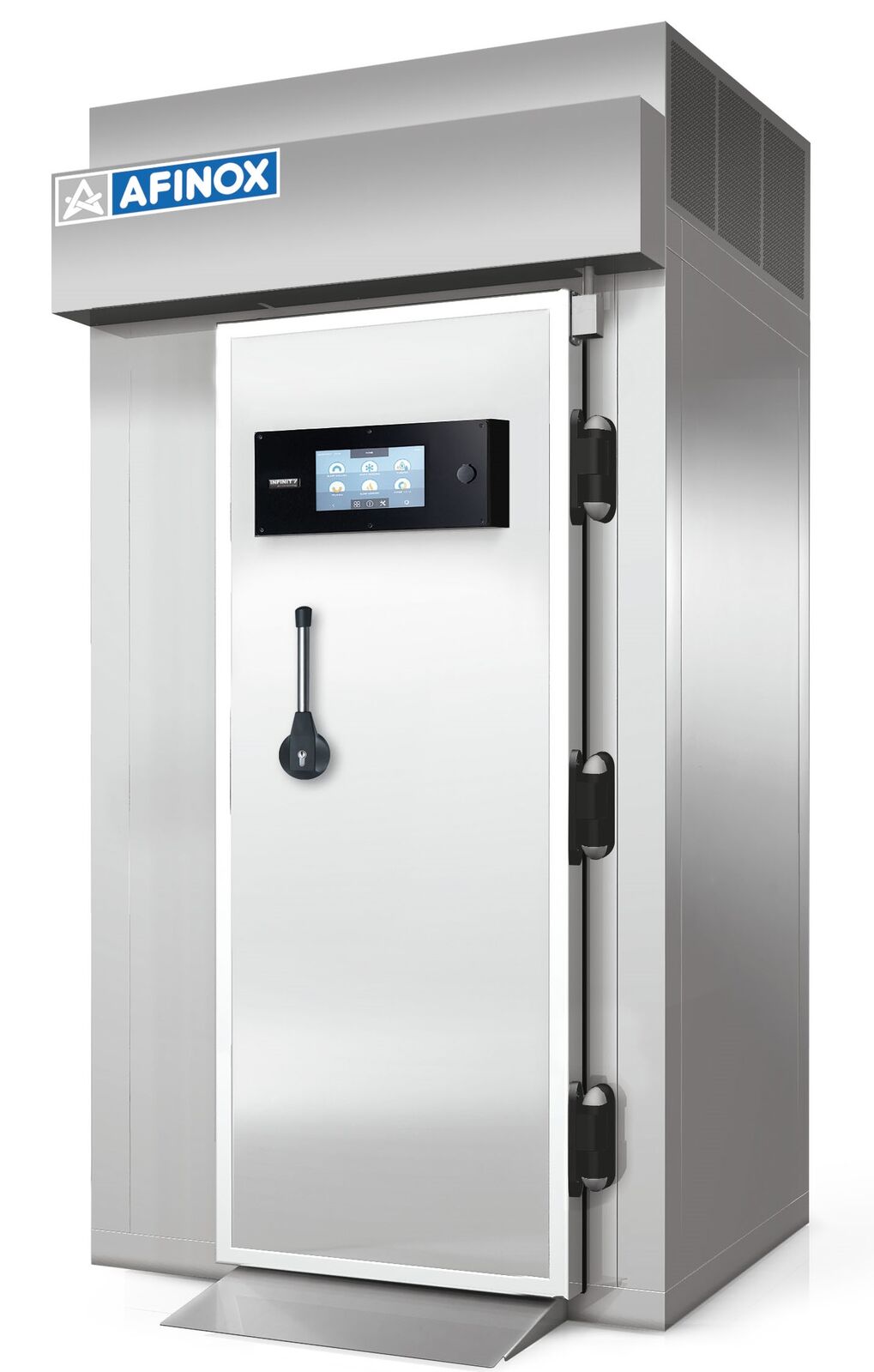

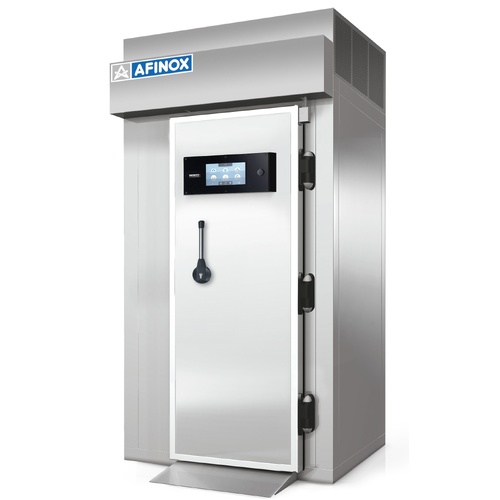

Afinox Infinity Evolution 40 Compact Start Blast Chiller / Shock Freezer
Roll In Blast Chiller / Shock Freezer with GN1/1, GN2/1, EN400x600 and EN600x400 Trolley Capacity
In Stock
(AX9AMI40HT5SA90AA)
| Model | Infinity Evolution 40 Compact Start |
| Model Number | AX9AMI40HT5SA90AA |
| Roll In Dimensions | 1290 x 1332 x 2466 |
| Remote Unit Dimensions | 913 x 663 x 377 |
| Internal Dimensions | 680 x 830 x 1800 |
| Remote Unit Power | 4HP |
| Trolley Capacity | 2x GN1/1, 1x GN2/1, 1x EN400x600, 1x EN600x800 |
| Load Capacity (Blast Chilling +3°C) | 110kg |
| Loac Capacity (Shock Freezing -18°C) | 95kg |
| Power Supply | 400V / 3Ph / 50Hz |
| Nominal Power | 3250 Watts |
| Absorbed Current | 21 Amps |
| Net Weight (Roll In / Remote Unit) | 553kg / 116kg |
| Refrigerant | R290 |
