Model No: AX9AMI40HT5OA90AA

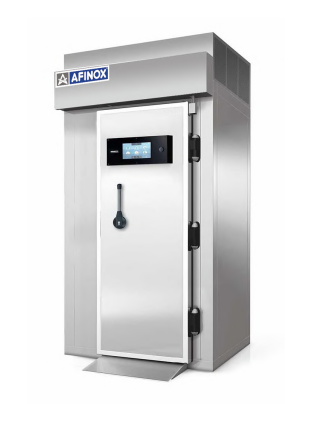

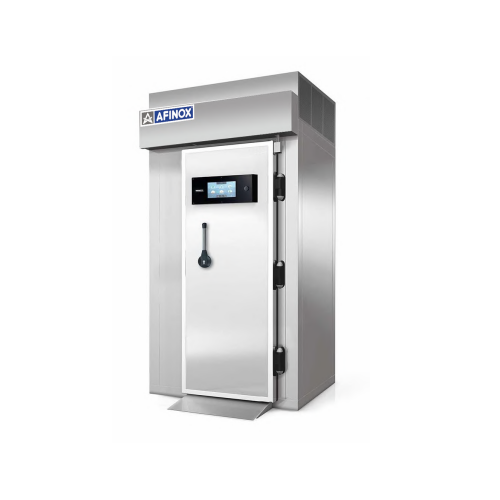

Afinox Infinity Evolution 40 Compact All In One Blast Chiller / Shock Freezer
Roll-In All-in-One Disassembled BC/SF
For chefs and kitchen professionals who demand advanced food preservation and process control, the Afinox INFINITY 40 COMPACT all-in-one blast chiller delivers blast chilling, shock freezing, thawing, slow cooking, proving, and combined cycle functionality for high-capacity trolley applications.
Designed for professional foodservice environments, it features AISI 304 stainless steel construction, a 9” touch control system, multilevel functionality, defrosting function, USB HACCP data download, and a multipoint core probe with 4 reading points.
Engineered for flexibility and operational efficiency, the INFINITY 40 COMPACT all-in-one supports up to 40 GN1/1 trays or 40 EN600x400 trays and is designed for connection to an external condensing unit.
Winning Features
- Blast chilling
- Shock freezing
- Thawing function
- Slow cooking function
- Proving function
- Combined cycle functionality
- 9” touch screen controller
- Multilevel functionality
- Defrosting function
- USB HACCP data download
- Multipoint core probe with 4 reading points
- SD card with tutorial videos
- AISI 304 stainless steel construction
Engineered for high-capacity food production
Built for demanding commercial kitchens and production environments, the INFINITY 40 COMPACT all-in-one is designed for trolley applications and supports high-capacity blast chilling and shock freezing operations with flexible programmable cycles.
The Afinox INFINITY 40 COMPACT all-in-one also features
- Maximum capacity of 40 GN1/1 H40mm trays
- Maximum capacity of 40 EN600x400 H40mm trays
- Stainless steel ramp included
- Supplied assembled or disassembled
- Connection for external condensing unit
- Optional EvoCloud compatibility
- Optional sterilizer, tracer, and supervisor
- Optional Wi-fi probe and hot probe
(AX9AMI40HT5OA90AA)
| Model | INFINITY 40 COMPACT all-in-one |
| Model Number | 9AMI40IT5OA01 - 9AMI40HT5OA90 |
| Dimensions | 1290 x 1332 x 2466 mm |
| Internal Dimensions | 680 x 830 x 1800 mm |
| Packing Dimensions | 1290 x 1176 x 2562 mm |
| Internal Volume | 1020 L |
| Insulation Thickness | 80 mm |
| Power Supply | 400V / 3 / 50Hz |
| Nominal Power Consumption | 3250 W |
| Refrigerating Power | 5060 W |
| Maximum Tray Capacity | 40 GN1/1 H40mm - 40 EN600x400 H40mm |
| Controller | Touch Screen 9" |
| Net Weight | 327 kg |
| Gross Weight | 553 kg |
| Supplied Accessories | Stainless steel ramp, SD card with tutorial videos, multipoint core probe |
| Type | Blast Chiller Freezer |
