Model No: Opti200L

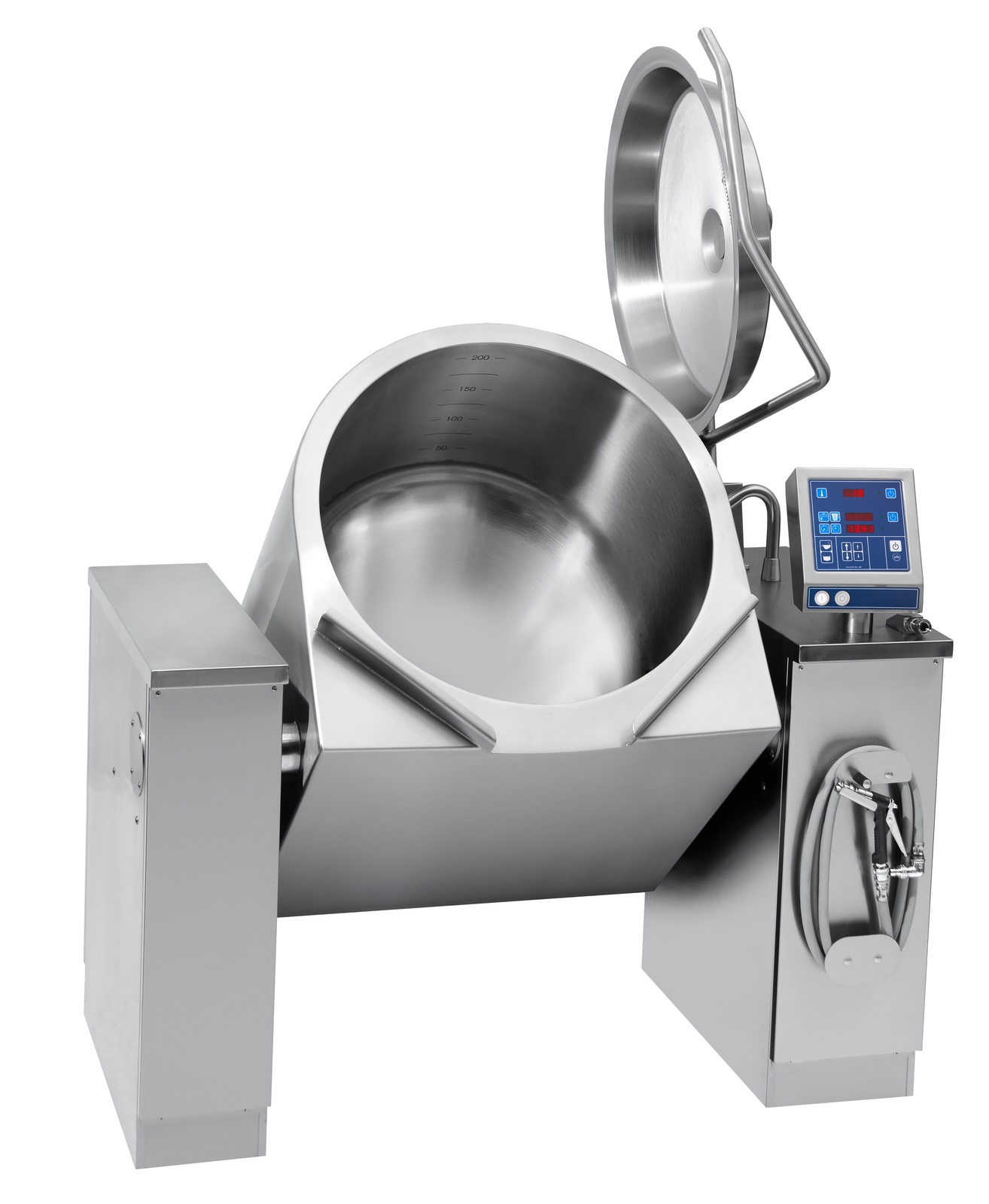

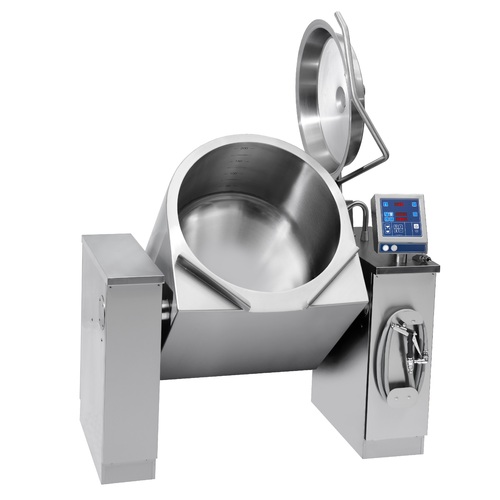

Joni Opti 200 L Steam Jacketed Kettle

If ergonomic use is important and a stirrer is not required the Opti is the obvious choice, as it has a tilt height of 600 mm.

The Opti is available in sizes from 40 to 300 litres and can be fitted with a wide variety of labour-saving accessories. It can be linked to the Multi, Multi-Mix and OptiMix kettles.

The kettle is available with nominal volumes of 40, 60, 80, 100, 120, 150, 200, 250 or 300 litres.

The Opti is supplied as standard with AutoTemp 31 control, which includes:-

  • electric tilt with TiltBack,
  • digital control and display of the inner kettle temperature,
  • an electronic water flow meter,
  • a clock with an alarm function and
  • Water-Level-Automatic.

As an option, the kettle is available with AutoTemp 51 control, which includes:-

  • a further six programs and a cooking probe. Ten sets of parameters can be saved for each program and a cooking probe can be used to control and display the temperature of the food.

The control panel is located on an adjustable control box on the pillar.

The Opti comes as standard with a lightweight, tight-sealing lid made from synthetic material.

The lid is hinged on the pillar with the control panel and a gas spring enables the lid to be opened with minimal effort. As an option the kettle can be delivered with a rotatable lid. This makes the cleaning of the lid easier especially for larger kettles.

The many options for combining different sizes and models with narrow or wide pillars enable the kettle to be adapted to existing installations. This minimises the need to make expensive modifications to existing buildings.

(Opti200L)

SKU Opti200L
Type Joni Opti
Category Kettle
Type Opti
Construction Stainless steel
Working pressure 1.0 bar
Max. steam temperature 120° C
Max, temperature on outside of kettle bowl Less 40° C
Working height 900 mm
Max. cooking capacity 200 litres
Stirrer speed rpm min-max NA
Weight (kg) 406
Dimensions W x D x H (mm) 1542 x 1007 x 1971
Power connection 3 Phase, 400V, 50Hz,
Rated power (kw) 30.00
Current consumption (A) 3 x 43
Time to boil water 10°-90° C (min) app. 38
Water connection ½", 1.5-6 bar, 35L/min
AutoTemp 02e Control Standard
AutoTemp 11 Control Option
AutoTemp 31 Control NA
Butterfly valve Option
Sieve plate Option
Spray gun Option
MultiClean NA
Chilling Option
Shipping Weight 456.0000kg
Shipping Width 1.842m
Shipping Height 1.500m
Shipping Length 1.410m
Shipping Cubic 3.895830000m3


Available Accessories
